(88.035.55[02]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL

Запчасти Case 590SN (88.035.55[02]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES

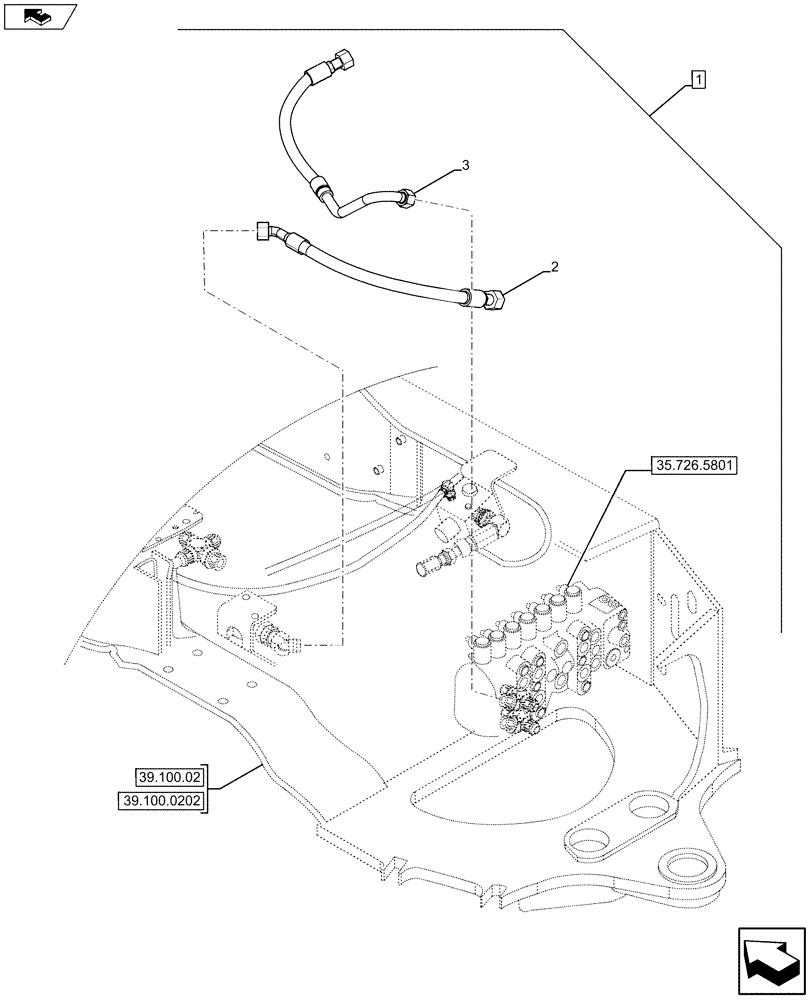

Схема запчастей Case 590SN - (88.035.55[02]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES
home
39.100.0202
35.726.5801
3
39.100.02
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527103

CONSTRUCTION DIA

Uni-Aux to Combo, STD, PC, Incl 2 - 3

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.55 [01], 88.035.55 [03] to 88.035.55 [06]

1шт.

2

84258266

HOSE ASSY.,19mm ID x 713mm L

1шт.

3

84292024

HYD TUBE

1шт.
