Запчасти Case 590SN (88.035.55[01]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES

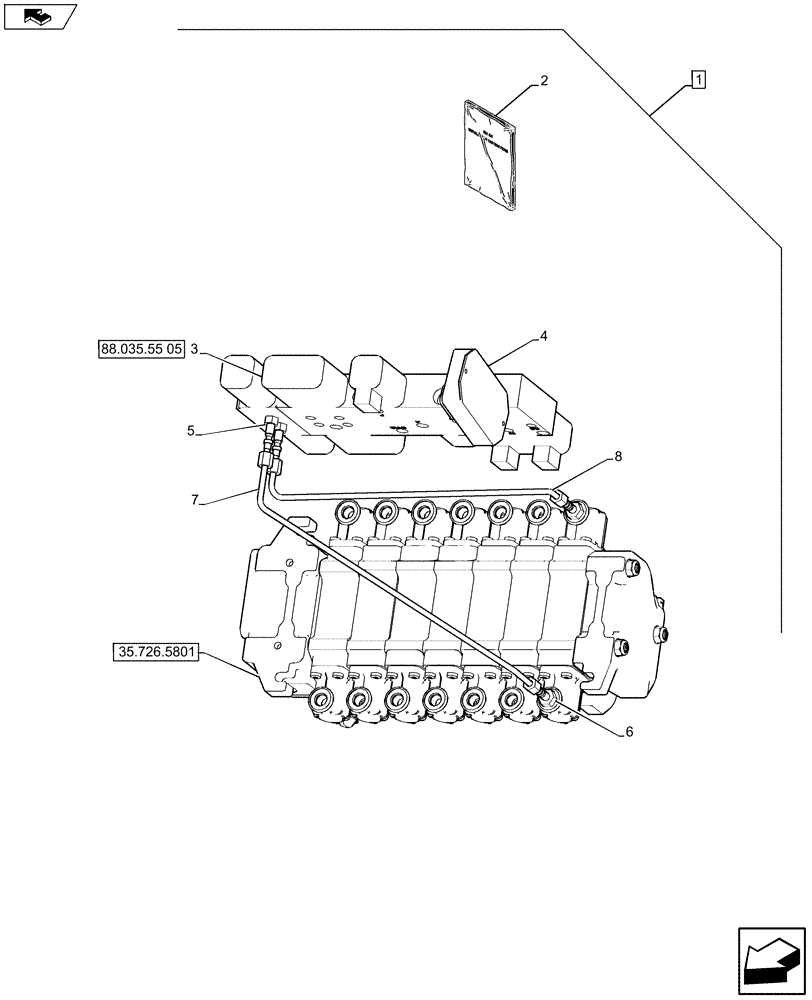

Схема запчастей Case 590SN - (88.035.55[01]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES
88.035.55 05
home
6
8
5
35.726.5801
2
7
1
3
4

Артикул

Название

Примечание

Количество

1

84527103

CONSTRUCTION DIA

Uni-Aux to Combo, STD, PC, Incl 2 - 8

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.55 [02] to 88.035.55 [06]

1шт.

2

84527088

INSTRUCTION

1шт.

3

85827471

HYDRAULIC VALVE

1шт.

4

84266025

MODULE

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

7

87438012

HYD TUBE

1шт.

8

87438015

HYD TUBE

1шт.

Выбрано товаров: 10
