(88.035.54[02]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE

Запчасти Case 590SN (88.035.54[02]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES

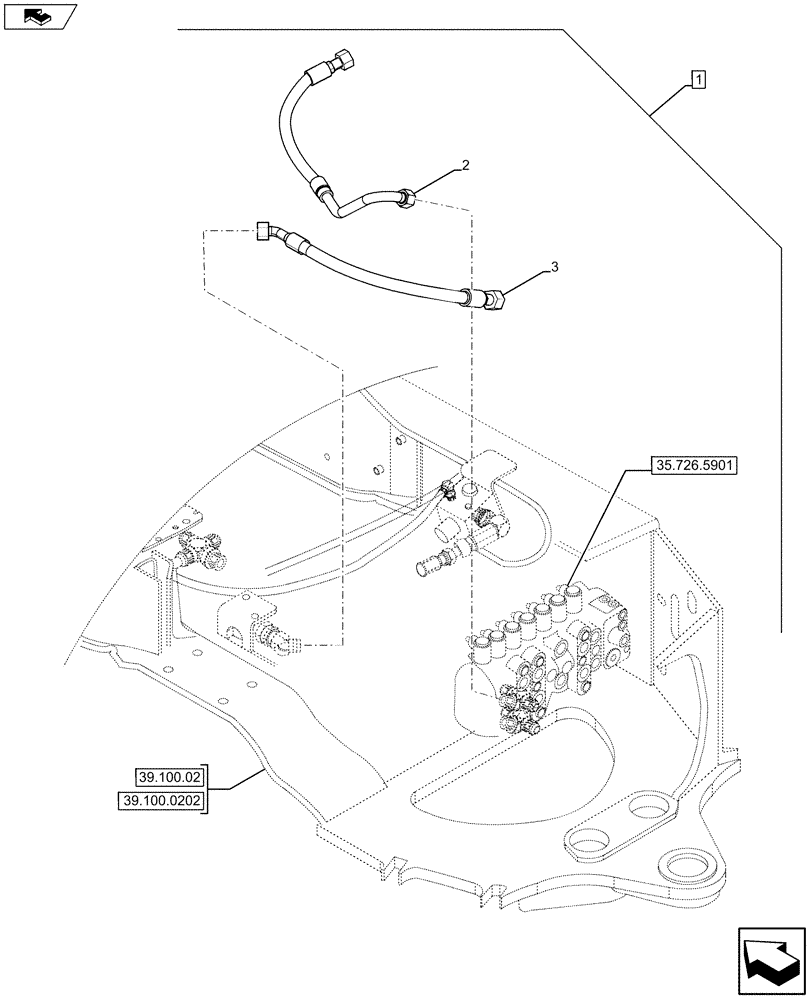

Схема запчастей Case 590SN - (88.035.54[02]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES
39.100.0202
1
39.100.02
35.726.5901
home
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527084

CONSTRUCTION DIA

Uni-Aux to Combo Aux, Pilot, Extendable Hoe, Incl 2 - 3

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.54 [01], 88.035.54 [03] to 88.035.54 [06]

1шт.

2

84292027

HYD TUBE

1шт.

3

84292795

HOSE ASSY.,19mm ID x 698mm L

1шт.

Выбрано товаров: 5
