Запчасти Case 590SN (88.035.54[01]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES

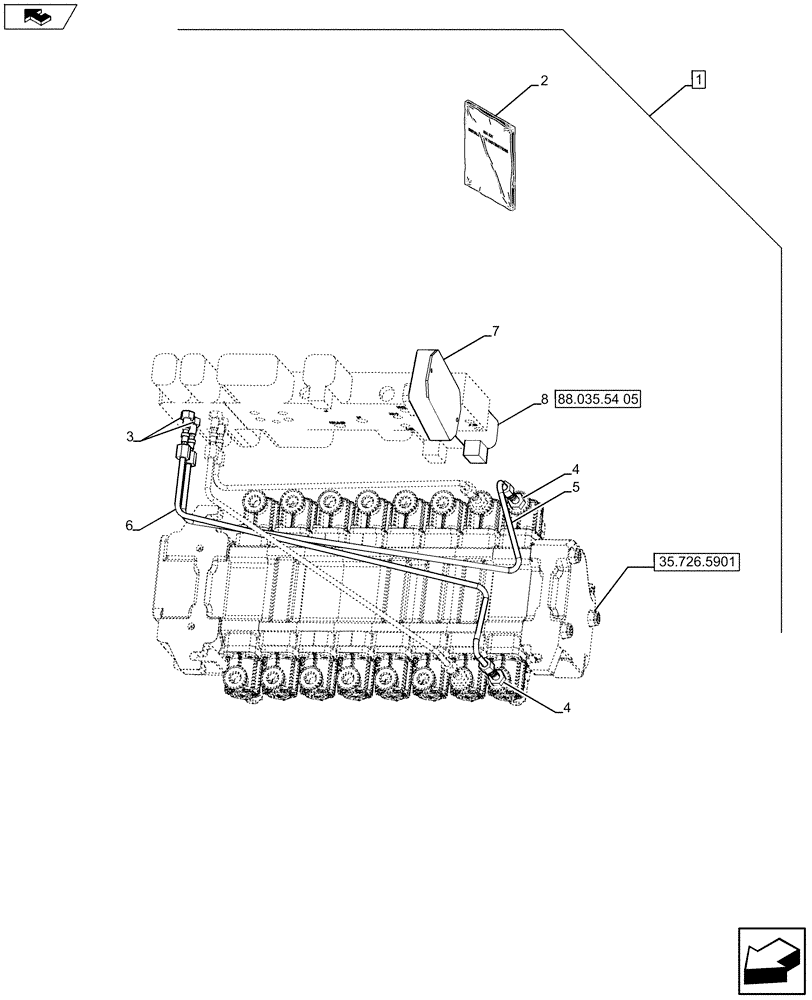

Схема запчастей Case 590SN - (88.035.54[01]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES
8
2
7
3
88.035.54 05
6
4
4
home
5
1
35.726.5901

Артикул

Название

Примечание

Количество

1

84527084

CONSTRUCTION DIA

Uni-Aux to Combo Aux, Pilot, Extend. Hoe, Incl 2 - 8

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.54 [02] to 88.035.54 [06]

1шт.

2

84527088

INSTRUCTION

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

5

87440837

HYD TUBE

1шт.

6

87440835

HYD TUBE

1шт.

7

84266025

MODULE

1шт.

8

87434621

CONTROL VALVE

1шт.

Выбрано товаров: 10
