Запчасти Case 590SN (88.035.53) - DIA KIT, BOOM LOCK VALVE (88) - ACCESSORIES

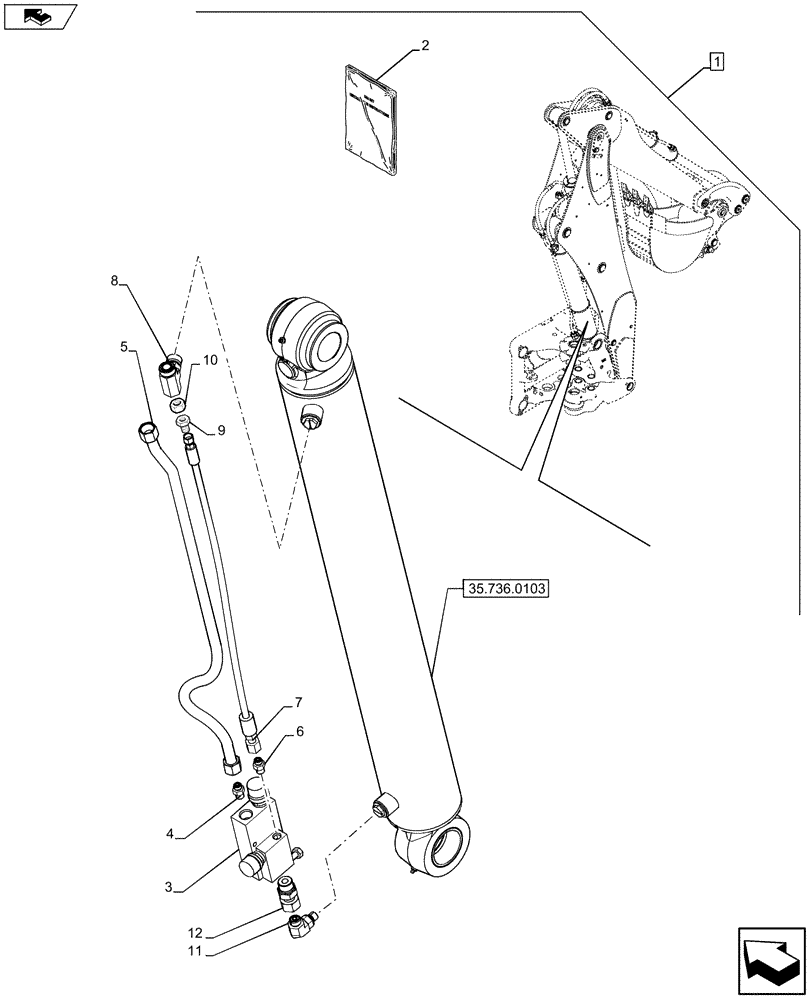

Схема запчастей Case 590SN - (88.035.53) - DIA KIT, BOOM LOCK VALVE (88) - ACCESSORIES
11
9
5
35.736.0103
10
12
8
1
6
7
home
3
4
2

Артикул

Название

Примечание

Количество

1

84588441

CONSTRUCTION DIA

Boom Lock Valve, Incl 2 - 12

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84588449

INSTRUCTION

1шт.

3

84574590

VALVE

1шт.

4

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

5

84522366

HYD TUBE

1шт.

6

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

7

84522368

HYDRAULIC HOSE,6.3mm ID x 975mm L

1шт.

8

84375320

BRANCH TEE

1шт.

9

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

1шт.

10

203-905

TUBE NUT,1 7/16"-12 ORFS

1шт.

11

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

12

85805124

HYD CONNECTOR,1-14 ORFS x 7/8-14 ORB

1шт.

Выбрано товаров: 13
