Запчасти Case 590SN (88.035.46[01]) - DIA KIT, RIDE CONTROL D9008 (88) - ACCESSORIES

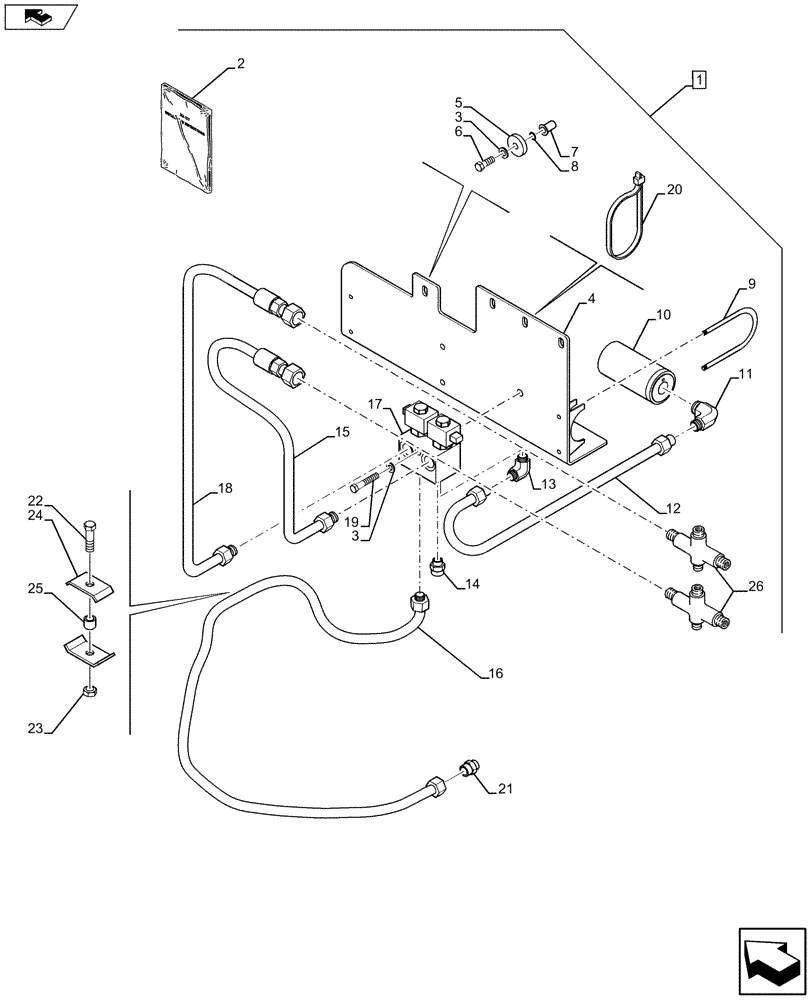

Схема запчастей Case 590SN - (88.035.46[01]) - DIA KIT, RIDE CONTROL D9008 (88) - ACCESSORIES
4
12
2
17
home
8
21
15
9
1
5
10
18
11
22
7
20
19
16
14
3
26
24
3
25
23
13
6

Артикул

Название

Примечание

Количество

1

47419559

KIT

Ride Control, Incl 2 - 26

1шт.

See Ref. 88.035.46 [02] to 88.035.46 [04], Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47419560

INSTRUCTION

Instructions

1шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

4

87421213

BRACKET

1шт.

5

87423067

SPACER,11mm ID x 40mm OD x 8mm L

2шт.

6

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

Assy, Incl 8

2шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

9

A13240

CLAMP,2-5/8" ID

2шт.

10

448284A1

ACCUMULATOR,275 Bar

1шт.

11

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

1шт.

12

84232491

HYD TUBE

1шт.

13

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

1шт.

14

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

3шт.

15

84290480

HYD TUBE

1шт.

16

84291884

HYD TUBE

1шт.

17

84348784

SOLENOID VALVE

1шт.

18

84290490

HYD TUBE

1шт.

19

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

21

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

1шт.

22

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

D138055

CLAMP

4шт.

25

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

26

87338053

4 WAY CONNECTION

2шт.

Выбрано товаров: 27
