Запчасти Case 590SN (88.035.44[08]) - DIA KIT, NO AUX TO COMBO, EXTENDABLE HOE, PILOT CONTROLS (88) - ACCESSORIES

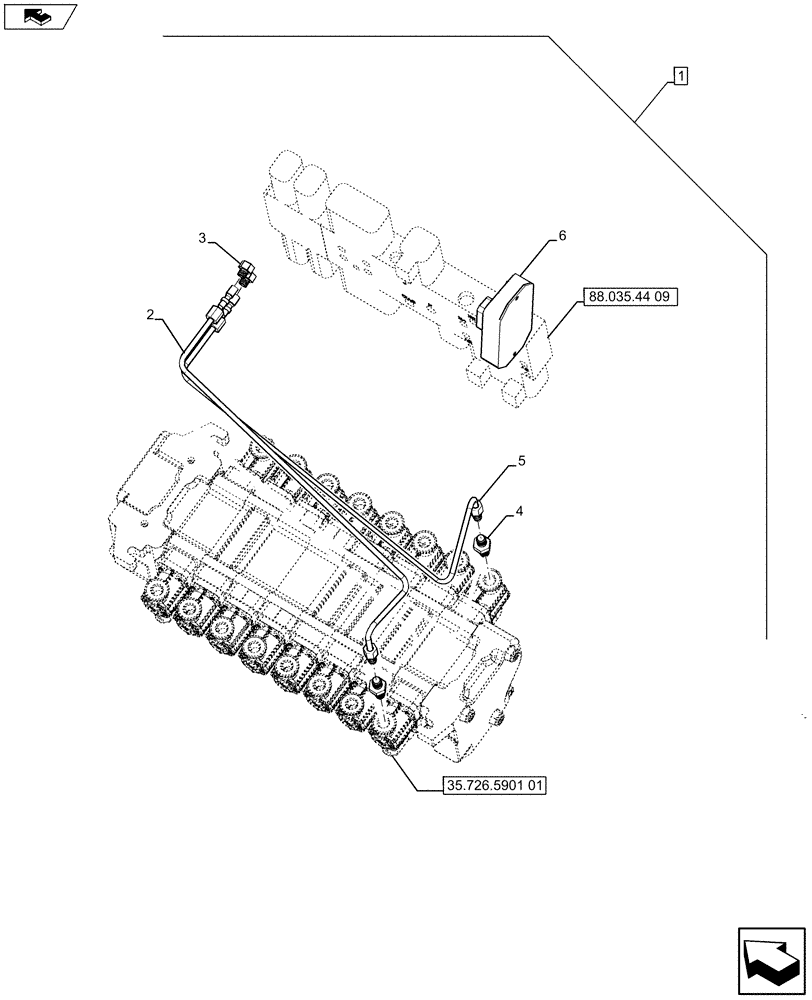

Схема запчастей Case 590SN - (88.035.44[08]) - DIA KIT, NO AUX TO COMBO, EXTENDABLE HOE, PILOT CONTROLS (88) - ACCESSORIES
2
3
4
1
35.726.5901 01
home
5
6
88.035.44 09

Артикул

Название

Примечание

Количество

1

47360027

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDABLE HOE, PILOT CONTROLS, Incl 2 - 6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.44 [01] to 88.035.44 [07], 88.035.44 [09] to 88.035.44 [11]

1шт.

2

87437635

HYD TUBE

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

5

87440837

HYD TUBE

1шт.

6

84266025

MODULE

1шт.

Выбрано товаров: 8
