Запчасти Case 590SN (88.035.44[05]) - DIA KIT, NO AUX TO COMBO, EXTENDABLE HOE, PILOT CONTROLS (88) - ACCESSORIES

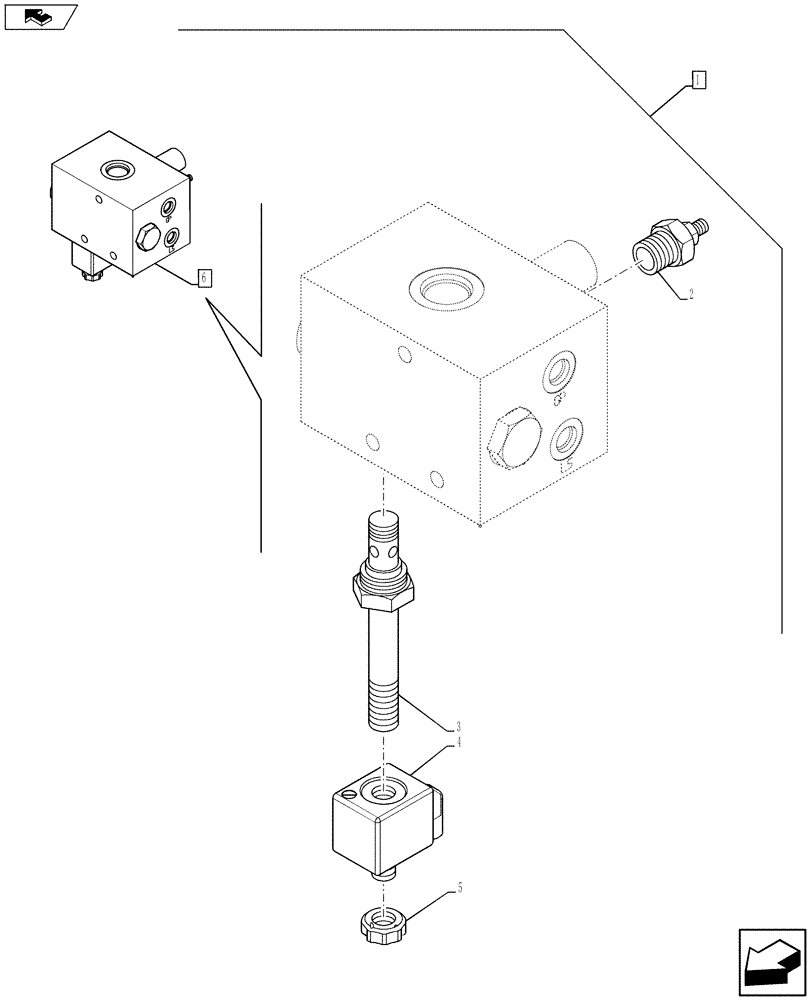

Схема запчастей Case 590SN - (88.035.44[05]) - DIA KIT, NO AUX TO COMBO, EXTENDABLE HOE, PILOT CONTROLS (88) - ACCESSORIES
2
home
1
5
4
6
3

Артикул

Название

Примечание

Количество

1

47360027

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDABLE HOE, PILOT CONTROLS, Incl 2 - 6

1шт.

See Ref. 88.035.44 [01] to 88.035.44 [04], 88.035.39 [06] to 88.035.39 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247110

VALVE

Assy, Incl 2 - 5

1шт.

Выбрано товаров: 8
