(88.035.41[08]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE

Запчасти Case 590SN (88.035.41[08]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES

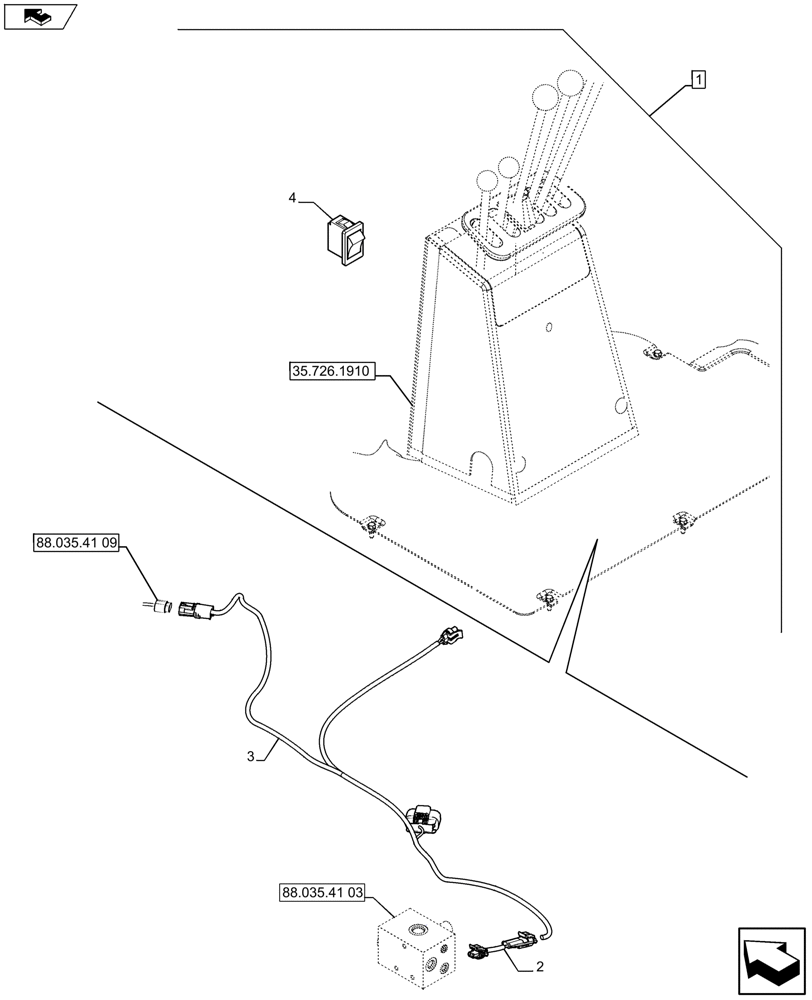

Схема запчастей Case 590SN - (88.035.41[08]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES
3
a
88.035.41 03
1
4
home
35.726.1910
2
88.035.41 09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546985

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE, Incl 2 - 4

1шт.

See Ref. 88.035.41 [01] to 88.035.41 [07], 88.035.41 [09] to 88.035.41 [13]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292391

WIRE HARNESS

Combo AUX, Mech Control, Hammer

1шт.

4

84241093

SWITCH

Bi - Dir Uni - Dir Selector

1шт.
