Артикул
Название
Примечание
Количество
1
84546985

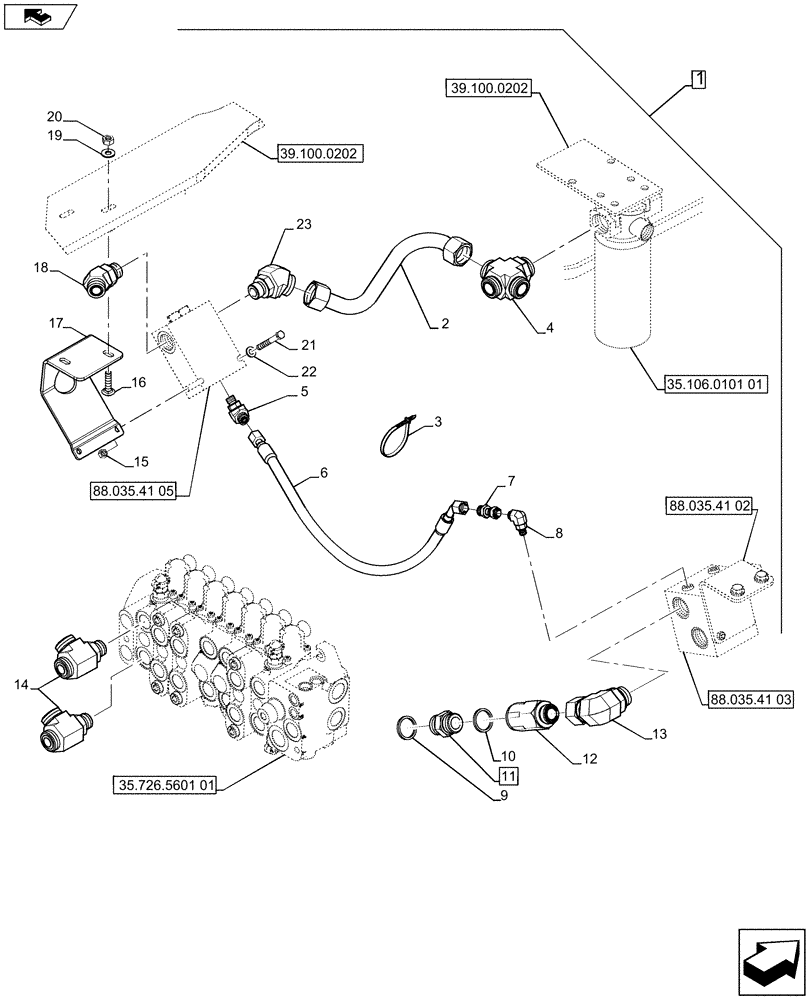

CONSTRUCTION DIA
NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE, Incl 2 - 24
1шт.
See Ref. 88.035.41 [01] to 88.035.41 [03], 88.035.41 [05] to 88.035.41 [13]
1шт.
Refer to Installation Instructions for Correct Assembly Procedure
1шт.
2
84354910
HYD TUBE
1шт.
3
L18331
CABLE TIE,375.9mm L, Nylon, Black
Assy, Incl 2
1шт.
4
84259313
FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB
1шт.
5
201-315
ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
1шт.
6
84258749
HOSE ASSY.,10mm ID x 645mm L
1шт.
7
84395081
ADAPTER
1шт.
8
84394685
ELBOW,9/16"-18 UNF-2A x 1/8"-28 GAS
1шт.
9
167268
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
11
9824055
HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB
Assy, Incl 9 - 10
1шт.
12
84256601
CHECK VALVE
1шт.
13
84262694
90 ELBOW,1-7/16"-12 ORFS x 1-1/16"-12 ORB
1шт.
14
87493307
RUN TEE
2шт.
15
9706690
NUT,M8 x 1.25, Cl 8
2шт.
16
374892
CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8
2шт.
17
84259186
BRACKET
1шт.
18
201-317
ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS
1шт.
19
87655046
SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk
2шт.
20
100016
NUT,M10 x 1.5, Cl 8
2шт.
21
120062
BOLT,Hex, M8 x 70mm, Cl 8.8
2шт.
22
87655042
SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk
2шт.
23
87302733
HYD CONNECTOR
1шт.
Выбрано товаров: 25
