Запчасти Case 590SN (88.035.41[03]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES

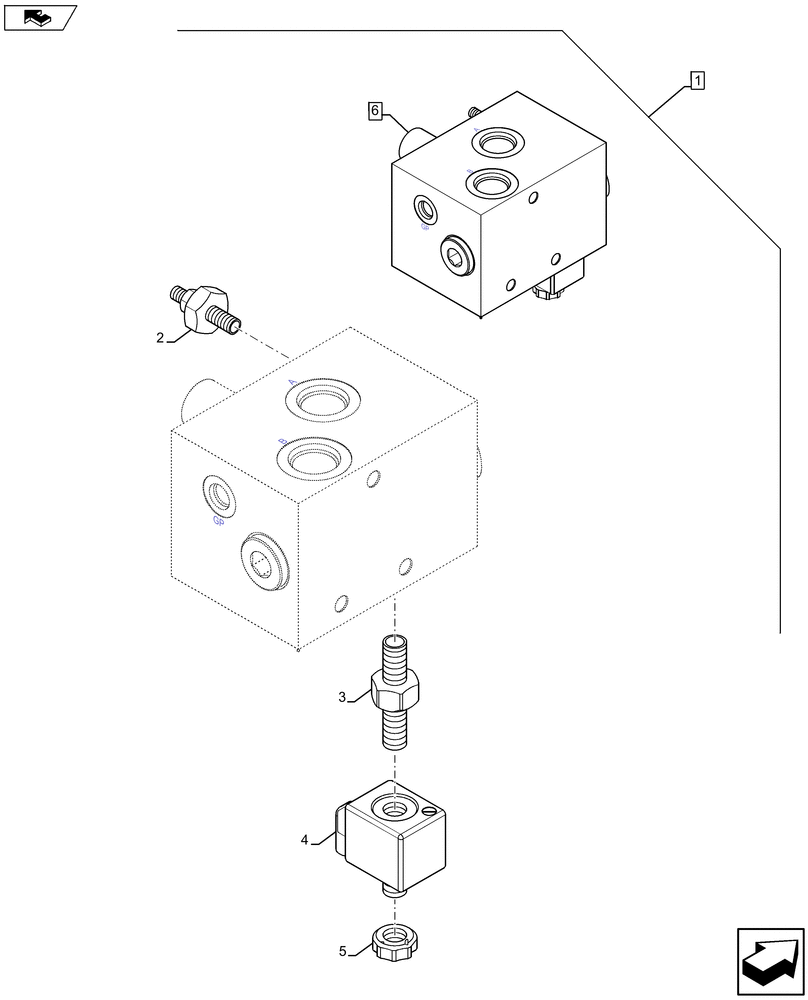

Схема запчастей Case 590SN - (88.035.41[03]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES
4
5
3
1
home
2
6

Артикул

Название

Примечание

Количество

1

84546985

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE, Incl 2 - 6

1шт.

See Ref. 88.035.41 [01] to 88.035.41 [02], 88.035.41 [04] to 88.035.41 [13]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247109

VALVE

Assy, Incl 2 - 5

1шт.

Выбрано товаров: 8
