Запчасти Case 590SN (88.035.40[09]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES

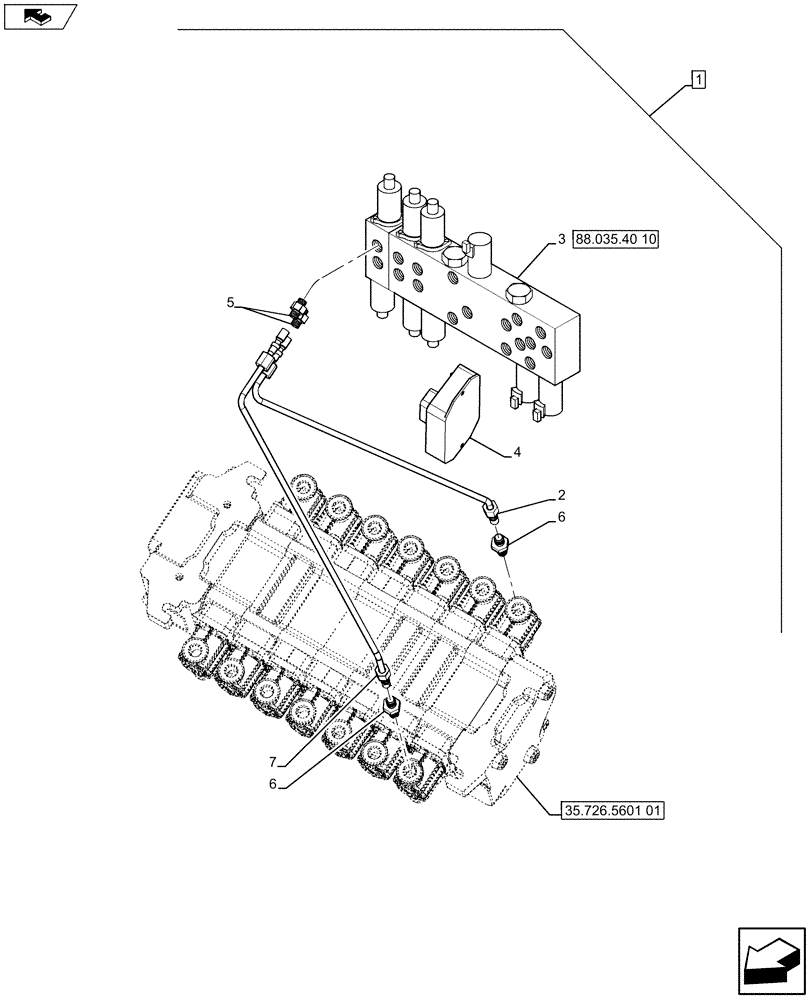

Схема запчастей Case 590SN - (88.035.40[09]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES
1
5
7
3
6
6
35.726.5601 01
home
2
88.035.40 10
4

Артикул

Название

Примечание

Количество

1

47360534

CONSTRUCTION DIA

NO AUX TO COMBO, STANDARD, PILOT CONTROLS, Incl 2 - 7

1шт.

See Ref. 88.035.40 [01] to 88.035.40 [08], 88.035.40 [10] to 88.035.40 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87438015

HYD TUBE

1шт.

3

85827471

HYDRAULIC VALVE

Assy

1шт.

4

84266025

MODULE

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

7

87438012

HYD TUBE

1шт.

Выбрано товаров: 9
