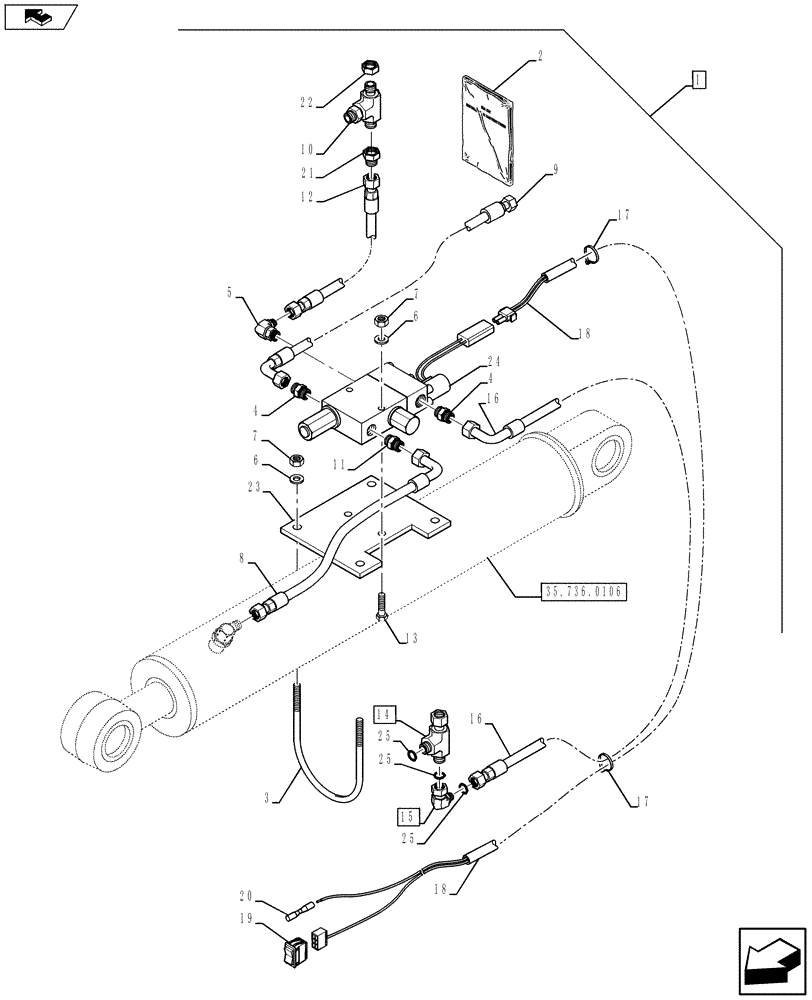

Запчасти Case 590SN (88.035.34) - DIA KIT, BACKHOE BOOM LOCK (88) - ACCESSORIES

1

84376271

KIT

Loader Backhoe Boom Lock, Incl 2 - 25, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84376512

INSTRUCTION

Valve mounting

1шт.

3

D150053

BOLT

3/8 in

2шт.

4

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

2шт.

5

87016877

ELBOW,90 Degree, 13/16"-16 x 9/16"-18, Adj, ORFS

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

7

231-1446

NUT,3/8" - 16, Gr 5

6шт.

8

84376465

HYD TUBE

3/4 in

1шт.

9

84376466

HYD TUBE

3/4 in

1шт.

10

84375320

BRANCH TEE

1шт.

11

87672176

HYD CONNECTOR

1шт.

12

84376469

HOSE ASSY.,8mm ID x 446mm L

13/16 - 16

1шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

14

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 25 (q.ty 2)

1шт.

15

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 25

1шт.

16

84376471

HOSE ASSY.,10mm ID x 3961mm L

11/16 - 16

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

18

84342283

HARNESS

1шт.

19

400016A1

SWITCH

1шт.

20

84292428

WIRE CONNECTOR

1шт.

21

87016874

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

22

703-905

TUBE NUT,1-7/16" - 12

1шт.

23

84314682

PLATE

1шт.

24

84312313

VALVE

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
