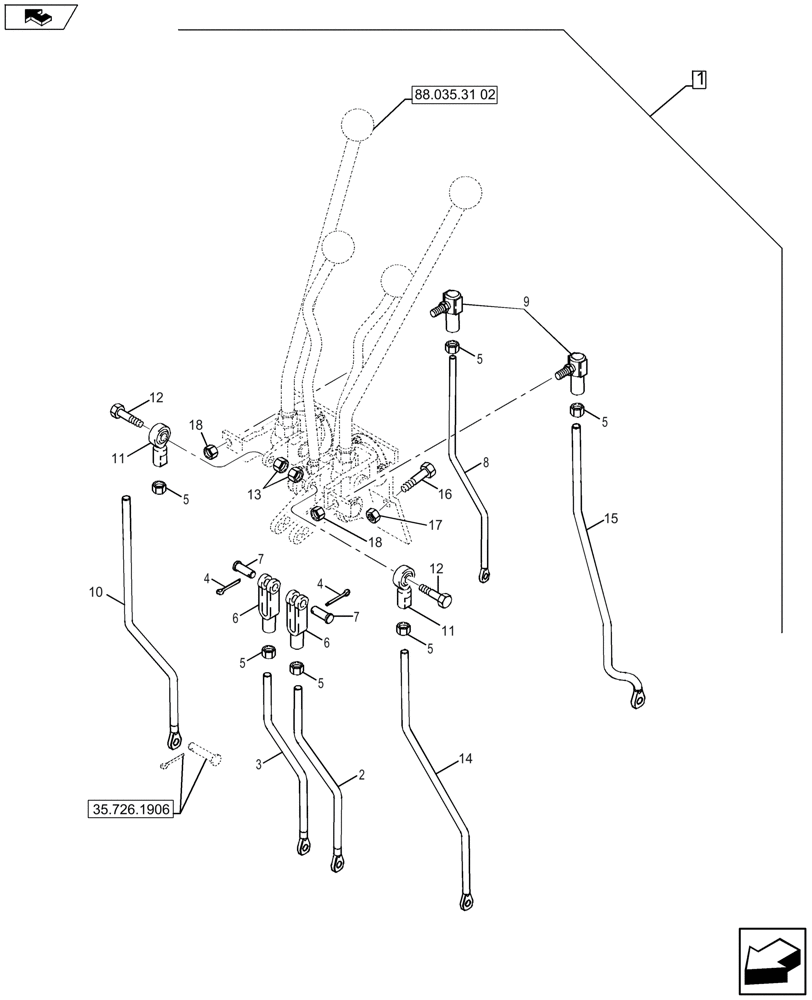

Запчасти Case 590SN (88.035.31[03]) - DIA KIT, CONVERSION FT SWING TO 2 LEVER, EXTENDABLE DIPPER (88) - ACCESSORIES

1

84487941

KIT

Conversion Swing to 2 Lever, Incl 2 - 18

1шт.

See Ref. 88.035.31 [01] to 88.035.31 [02]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87452404

THREADED ROD,9.53mm D x 277mm L

1шт.

3

87452406

THREADED ROD,9.53mm D x 277mm L

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

2шт.

5

425-116

NUT,3/8" - 24, Gr 5

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

8

87422264

THREADED ROD,9.53mm D x 384mm L

1шт.

9

D149295

BALL JOINT,3/8"

2шт.

10

87422262

THREADED ROD,9.53mm D x 367mm L

1шт.

11

87382812

BALL JOINT HEAD,3/8" - 24

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

87422256

THREADED ROD,9.53mm D x 378mm L

1шт.

15

87422253

THREADED ROD,9.53mm D x 385mm L

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

2шт.
