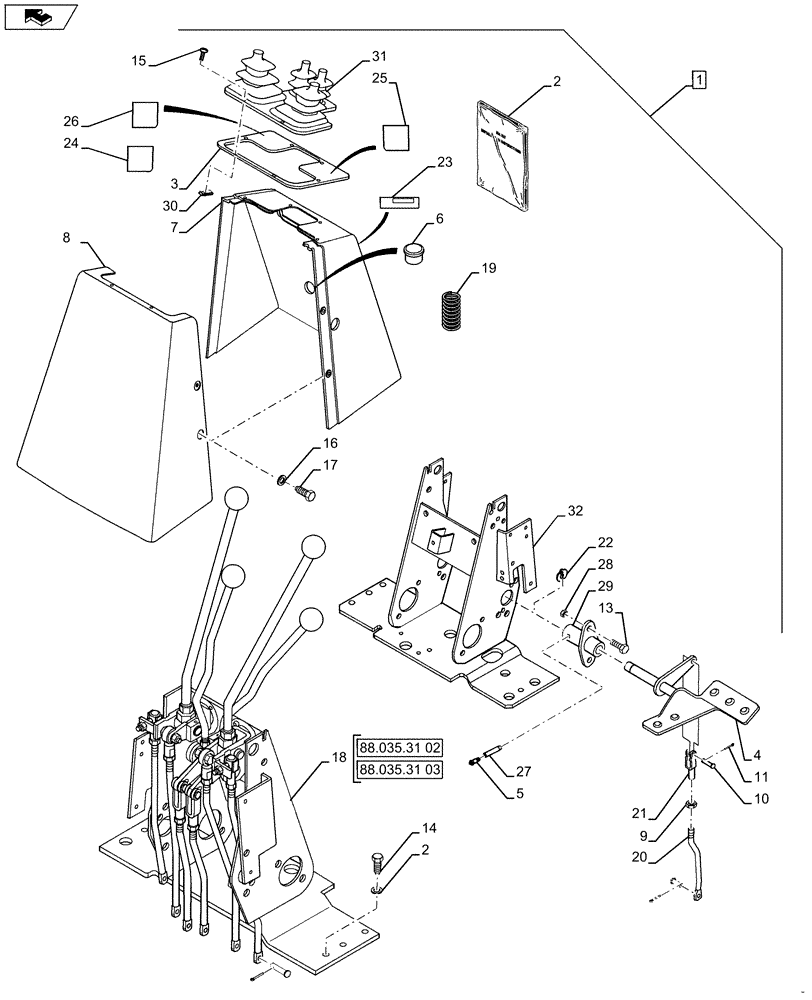

Запчасти Case 590SN (88.035.31[01]) - DIA KIT, CONVERSION FT SWING TO 2 LEVER, EXTENDABLE DIPPER (88) - ACCESSORIES

1

84487941

KIT

Conversion Swing to 2 Lever, Incl 2 - 30, Serial Range: -`0

1шт.

See Ref. 88.035.31 [02] to 88.035.31 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84487942

INSTRUCTION

1шт.

3

136824A1

LARGE PLATE

Boot Retaining

1шт.

4

179029A1

PEDAL

Extendable Dipper

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

7

390690A1

COVER

Front Console

1шт.

8

390758A1

COVER

Rear Console

1шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

10

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

1шт.

12

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

15

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

6шт.

16

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

17

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

3шт.

18

87309482

LEVER

Control Assembly

1шт.

19

87429150

VALVE SPRING

Swing Section Centering

1шт.

20

87440058

THREADED ROD,9.53mm D x 148mm L

1шт.

21

D134900

CLEVIS,3/8-24"

1шт.

22

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

23

D149826

IMPORTANT DECAL

Caution/Important

1шт.

24

D149827

IMPORTANT DECAL

Caution/Important; Extendable Dipper

1шт.

25

D149828

DECAL

Backhoe; 2 Lever

1шт.

26

D149829

DECAL

Backhoe; 2 Lever

1шт.

27

D150032

TUBE

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

29

126918A1

SUPPORT

1шт.

30

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

31

D149868

BOOT

1шт.

32

87418516

SUPPORT

1шт.
