(88.035.29[06]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER

Запчасти Case 590SN (88.035.29[06]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES

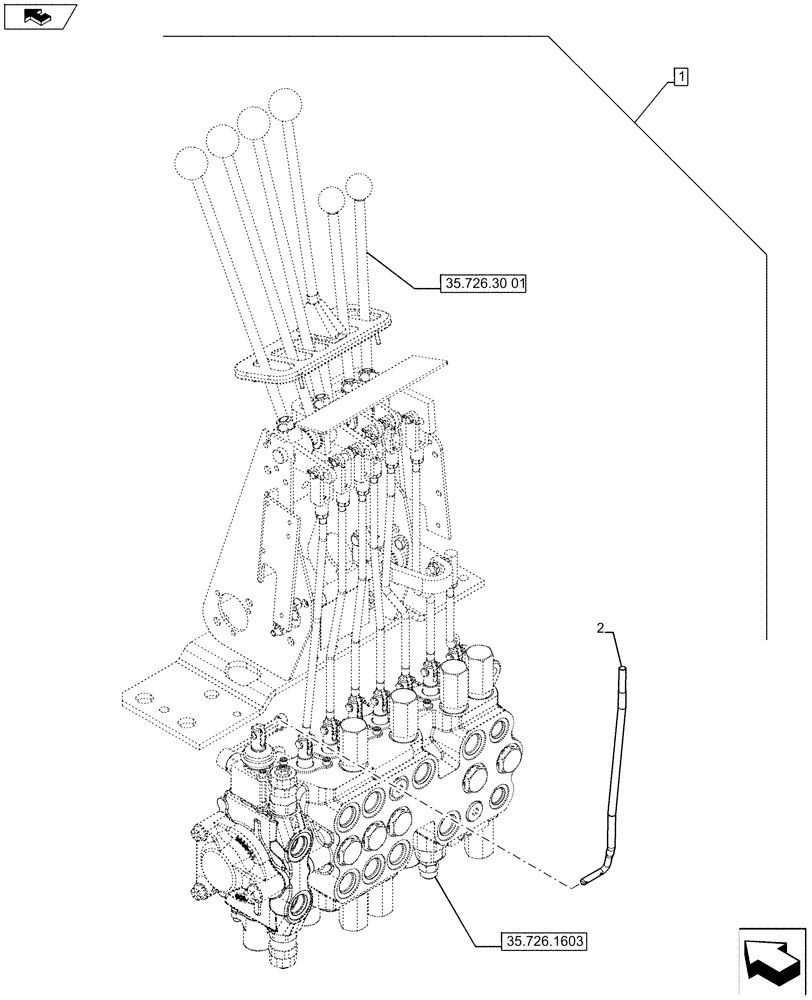

Схема запчастей Case 590SN - (88.035.29[06]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES
35.726.30 01
home
2
35.726.1603
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84396878

CONSTRUCTION DIA

Uni-Aux to Combo Auxiliary, W/ Mechanical Controls, W/Standard Dipper, Incl 2

1шт.

See Ref. 88.035.29 [01] to 88.035.29 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84398267

ADJUSTMENT ROD,9.525mm D x 315.2mm L

1шт.

Выбрано товаров: 4
