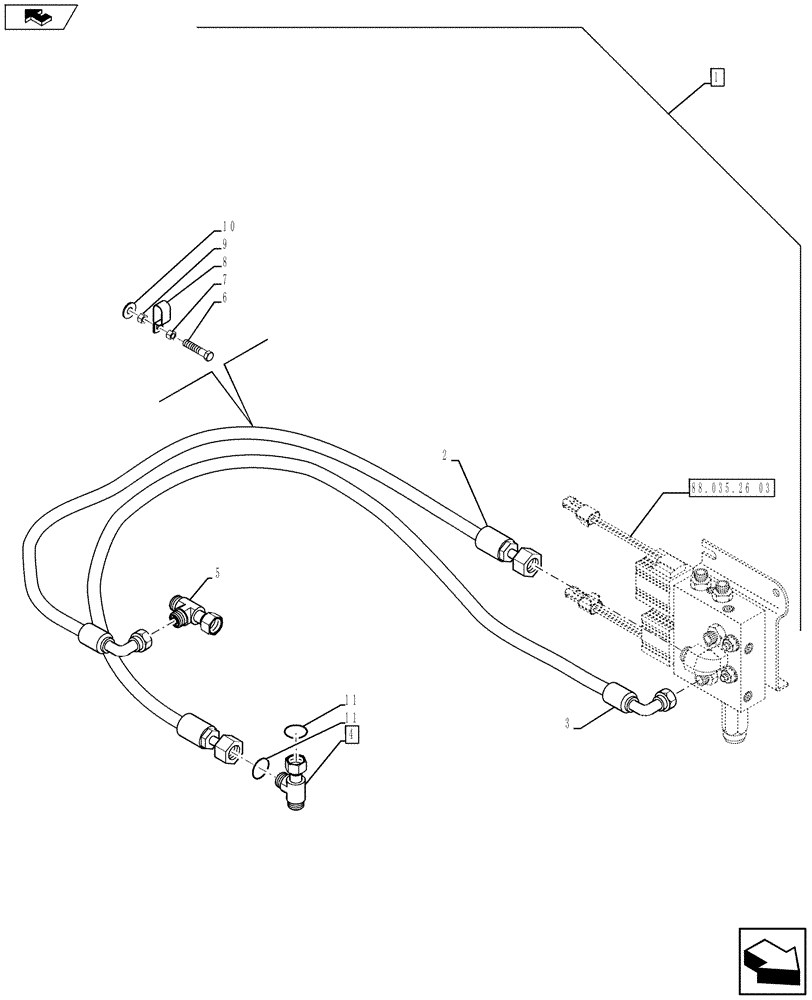

Запчасти Case 590SN (88.035.26[06]) - DIA KIT, HYDRAULIC LOADER COUPLER SYSTEM (88) - ACCESSORIES

1

84492774

KIT

Hydraulic Loader Coupler System, Incl 2 - 11, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See Ref. 88.035.26 [01] to 88.035.26 [05]

1шт.

2

84573737

HOSE,10mm ID x 1510mm L, SAE 100R16 Type S

1шт.

3

84573736

HOSE,6.3mm ID x 1510mm L, SAE 100R16 Type S

1шт.

4

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 11

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

9

87698854

NUT,M10

1шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
