Запчасти Case 590SN (88.035.25[08]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

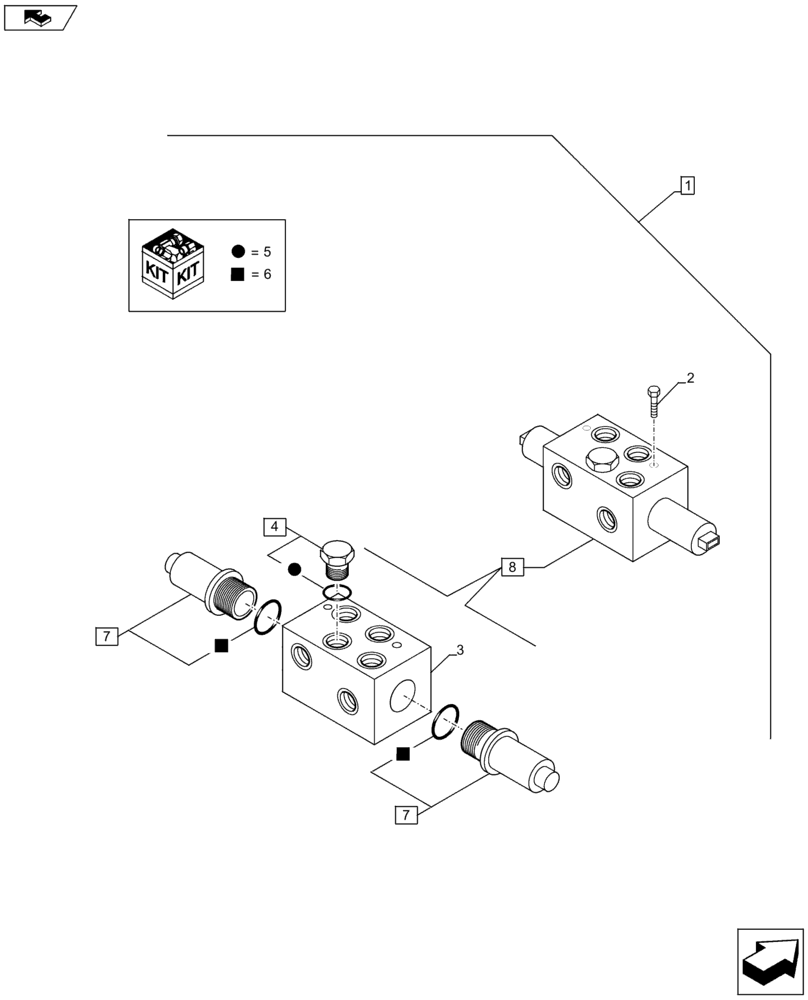

Схема запчастей Case 590SN - (88.035.25[08]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
1
5
5
8
6
6
5
4
6
7
7
3
6
2
home

Артикул

Название

Примечание

Количество

1

84484678

KIT

Pilot Controls, 3 Spools, Standard Transmission, Incl 2 - 8

1шт.

See Ref. 88.035.25 [01] to 88.035.25 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14300521

HEX SOC SCREW,M6 x 75mm, Cl 8.8

2шт.

3

87311363

ORIFICE,1.8mm ID

1шт.

4

87739122

VALVE

Assy, Incl 5

1шт.

5

85828001

SEAL KIT

1шт.

6

85828000

SEAL KIT

1шт.

7

85827993

SOLENOID VALVE

Assy, Incl 6

2шт.

8

87566480

VALVE

Assy, Incl 3 - 7

1шт.

Выбрано товаров: 10
