Запчасти Case 590SN (88.035.25[01]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

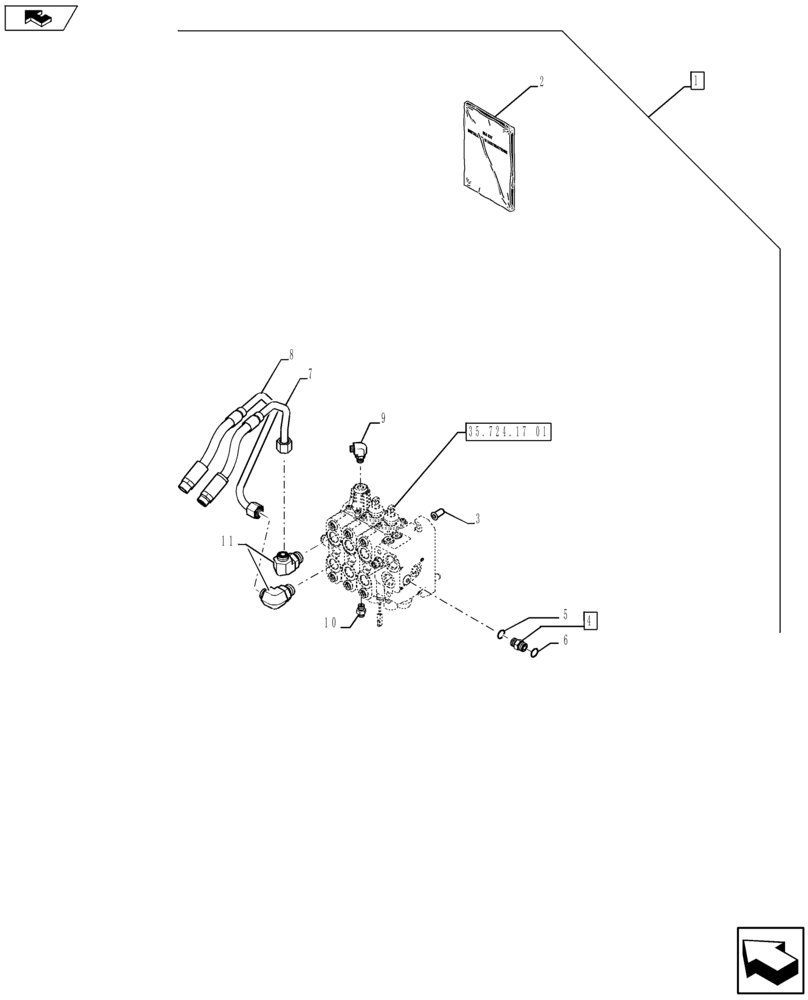

Схема запчастей Case 590SN - (88.035.25[01]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
3
35.724.17 01
5
6
11
2
1
10
home
7
4
8
9

Артикул

Название

Примечание

Количество

1

84484678

KIT

Pilot Controls, 3 Spools, Powershift Transmission, Incl 2 - 11

1шт.

See Ref. 88.035.25 [02] to 88.035.25 [08]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84484693

INSTRUCTION

1шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

4

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 5 - 6

2шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

84281124

TUBE

1шт.

8

84255714

TUBE

1шт.

9

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

1шт.

10

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

11

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

2шт.

Выбрано товаров: 13
