Запчасти Case 590SN (88.035.24[06]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

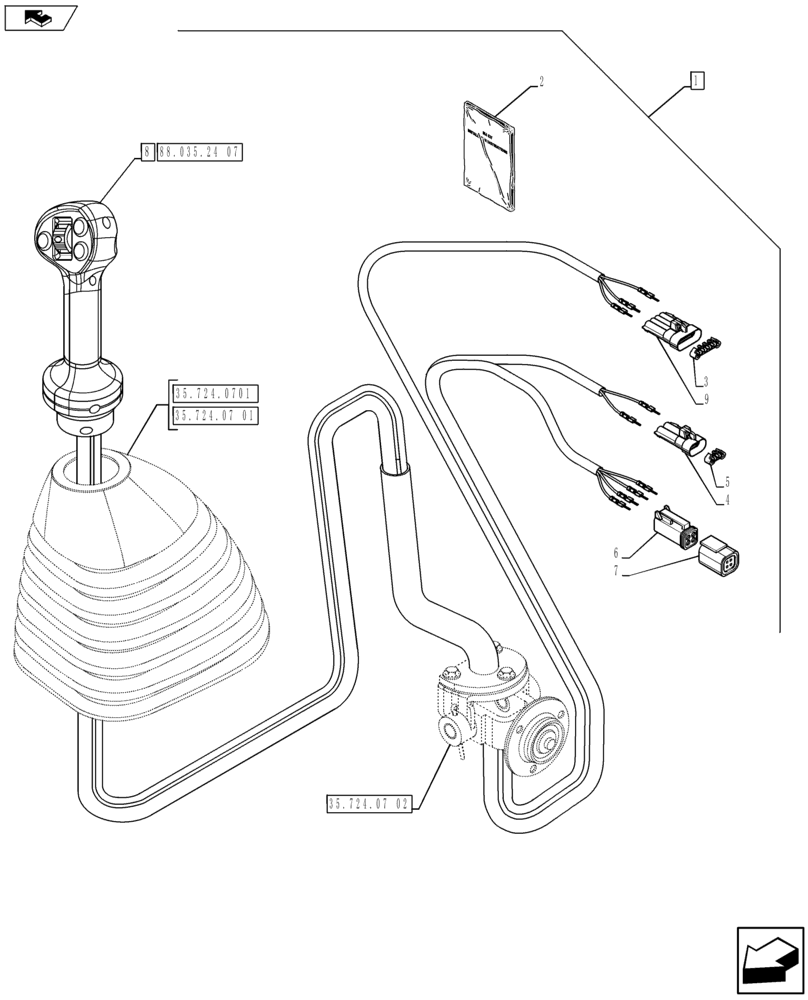

Схема запчастей Case 590SN - (88.035.24[06]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
35.724.07 01
2
35.724.0701
6
home
1
8
4
9
88.035.24 07
5
35.724.07 02
7
3

Артикул

Название

Примечание

Количество

1

84484675

KIT

Mech Controls, 3 Spools, Powershift Transmission, Incl 2 - 8

1шт.

See Ref. 88.035.24 [01] to 88.035.24 [05], 88.035.24 [07] to 88.035.24 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

3

258616A1

LOCK

1шт.

4

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

5

258613A1

LOCK

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

7

225327C1

WEDGE,Lock, Black

1шт.

8

87638044

JOYSTICK

Assy, Loader Control Lever, Three Button, DeCluth, Differential Lock and Kick Down, Prop Roller with Detent; 3 Spool

1шт.

Выбрано товаров: 10
