Запчасти Case 590SN (88.035.24[05]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

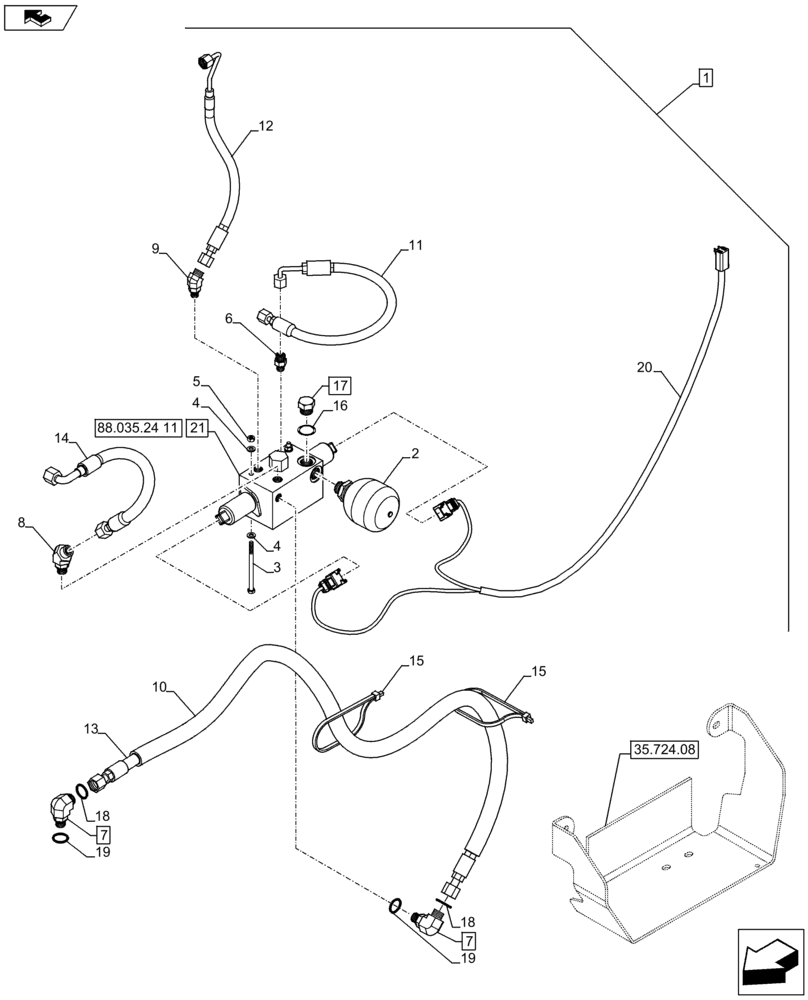

Схема запчастей Case 590SN - (88.035.24[05]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
6
88.035.24 11
19
35.724.08
21
17
10
1
20
15
13
3
19
16
8
5
9
18
14
home
15
4
7
7
4
2
18
12
11

Артикул

Название

Примечание

Количество

1

84484675

KIT

Mech Controls, 3 Spools, Powershift Transmission, Incl 2 - 21

1шт.

See Ref. 88.035.24 [01] to 88.035.24 [04], 88.035.24 [06] to 88.035.24 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87425225

ACCUMULATOR,0.16L

1шт.

3

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

4

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 18 - 19

2шт.

8

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

9

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

1шт.

10

84284222

GUARD,19mm ID x 1140mm L

1шт.

11

84256410

HOSE ASSY.,6.3mm ID x 488mm L

1шт.

12

84260774

TUBE

1шт.

13

84255991

HOSE ASSY.,10mm ID x 1283mm L

1шт.

14

84391231

HYDRAULIC HOSE,10mm ID x 387mm L

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

Assy, Incl 16

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

87651975

WIRE HARNESS

1шт.

21

87566480

VALVE

Assy

1шт.

Выбрано товаров: 23
