Запчасти Case 590SN (88.035.23[06]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES

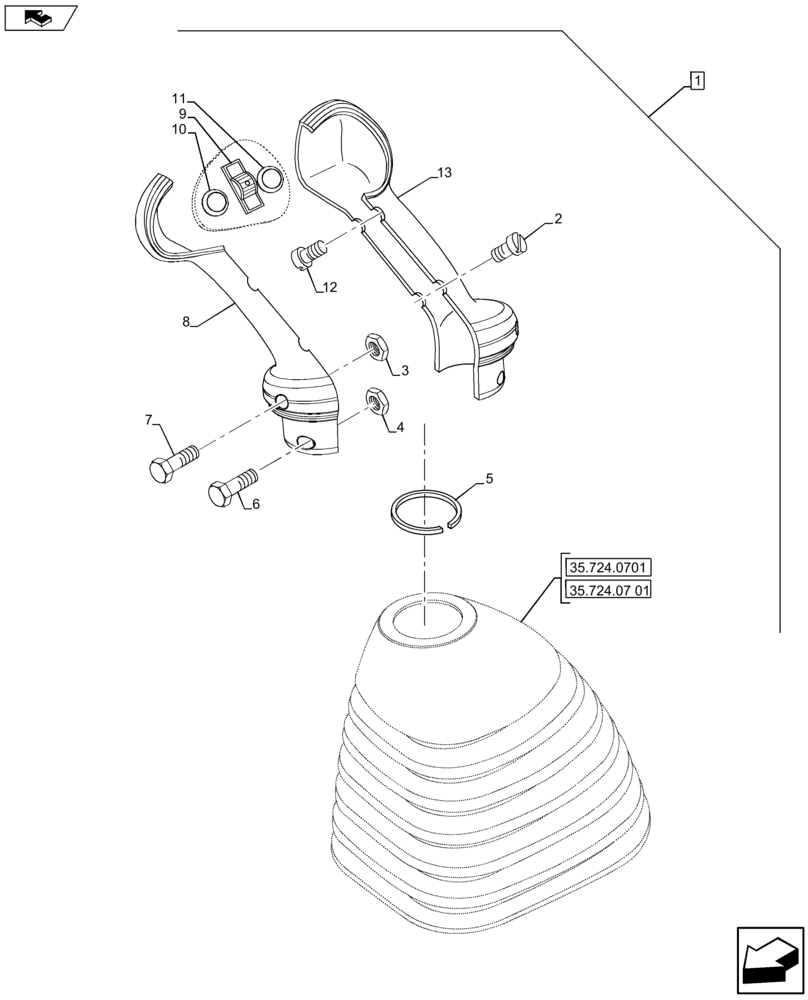

Схема запчастей Case 590SN - (88.035.23[06]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES
9
10
6
11
7
8
35.724.07 01
35.724.0701
4
home
5
2
3
1
13
12

Артикул

Название

Примечание

Количество

1

84484674

KIT

Pilot Controls, 3 Spools, Standard Transmission, Incl 2 - 13

1шт.

See Ref. 88.035.23 [01] to 88.035.23 [05], 88.035.23 [07] to 88.035.23 [08]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87689338

SCREW,#4 - 24 x 3/8"

1шт.

3

87638350

NUT

2шт.

4

825-1404

NUT,M4, Cl 8

4шт.

5

87689189

CABLE TIE,110mm L

1шт.

6

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

7

87019103

SET SCREW,M6 x 10mm

2шт.

8

87623339

HANDLE GRIP

1шт.

9

87387703

PUSH BUTTON

1шт.

10

87658706

PUSH BUTTON

De-Clutch

1шт.

11

87658705

PUSH BUTTON

Differential Lock

1шт.

12

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

13

87623338

HANDLE GRIP

1шт.

Выбрано товаров: 15
