Запчасти Case 590SN (88.035.23[03]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES

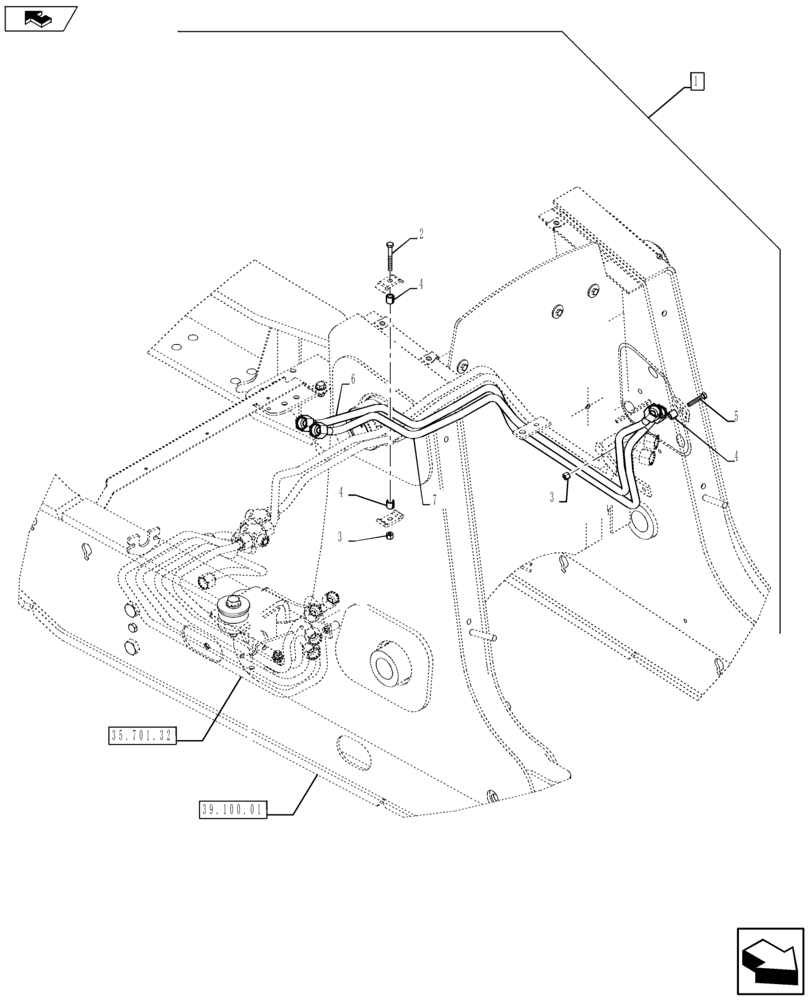

Схема запчастей Case 590SN - (88.035.23[03]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES
35.701.32
5
3
4
4
1
3
home
4
6
2
7
39.100.01

Артикул

Название

Примечание

Количество

1

84484674

KIT

Pilot Controls, 3 Spools, Standard Transmission, Incl 2 - 7

1шт.

See Ref. 88.035.23 [01] to 88.035.23 [02], 88.035.23 [04] to 88.035.23 [08]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

3

16104121

NUT,M8 x 1.25, Cl 10

2шт.

4

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

3шт.

5

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

6

84293011

TUBE

1шт.

7

84293009

TUBE

1шт.

Выбрано товаров: 9
