Запчасти Case 590SN (88.035.22[10]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES

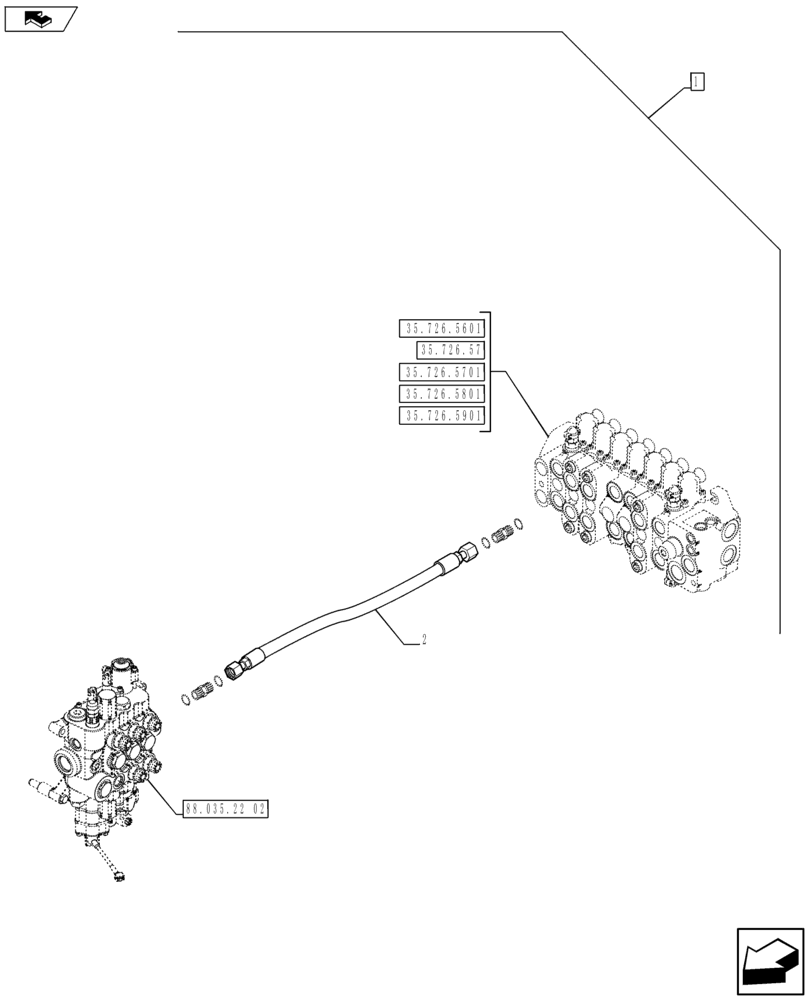

Схема запчастей Case 590SN - (88.035.22[10]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES
35.726.5701
1
35.726.5601
35.726.57
35.726.5901
35.726.5801
88.035.22 02
2
home

Артикул

Название

Примечание

Количество

1

84484673

KIT

Mech Controls, 3 Spools, Standard Transmission, Incl 2

1шт.

See Ref. 88.035.22 [01] to 88.035.22 [09], 88.035.22 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84256650

HOSE ASSY.,25mm ID x 954mm L

L = 954mm

1шт.

Models without Backhoe Auxiliary Hydraulic System only

1шт.
