(88.035.22[03]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION

Запчасти Case 590SN (88.035.22[03]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES

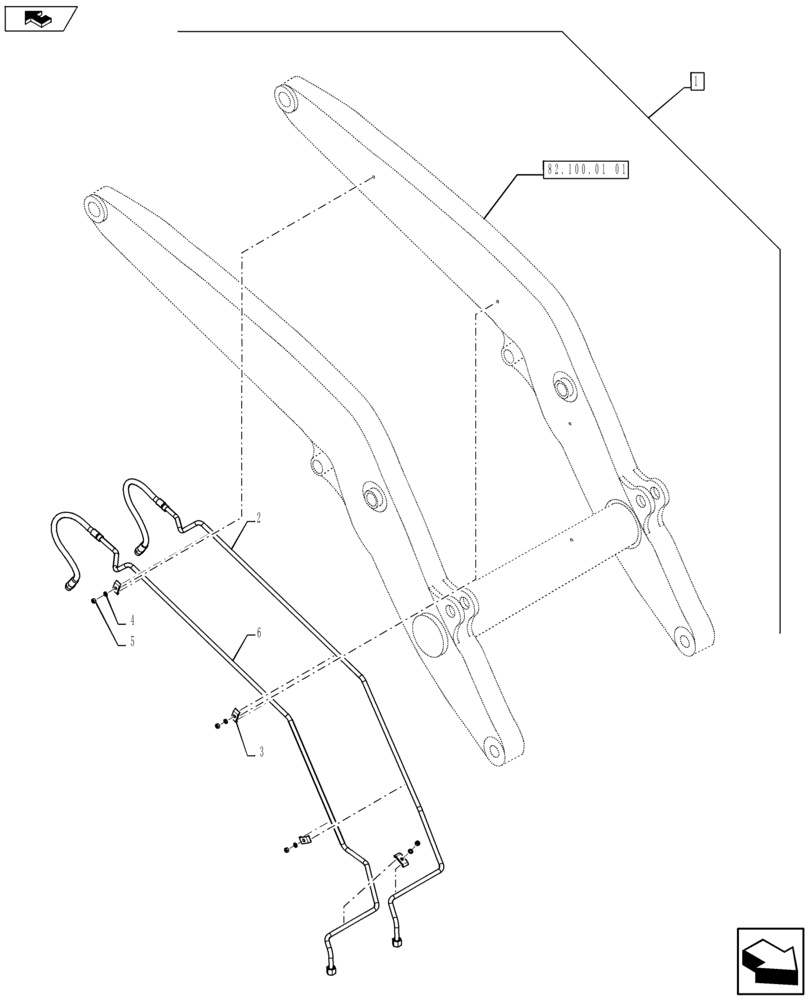

Схема запчастей Case 590SN - (88.035.22[03]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES
5
4
82.100.01 01
home
6
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84484673

KIT

Mech Controls, 3 Spools, Standard Transmission, Incl 2 - 6

1шт.

See Ref. 88.035.22 [01] to 88.035.22 [02], 88.035.22 [04] to 88.035.22 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84282567

HYD TUBE

1шт.

3

D138055

CLAMP

9шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.

6

84282570

HYD TUBE

4-in-1 Bucket Aux. Port B

1шт.
