Запчасти Case 590SN (88.035.22[02]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES

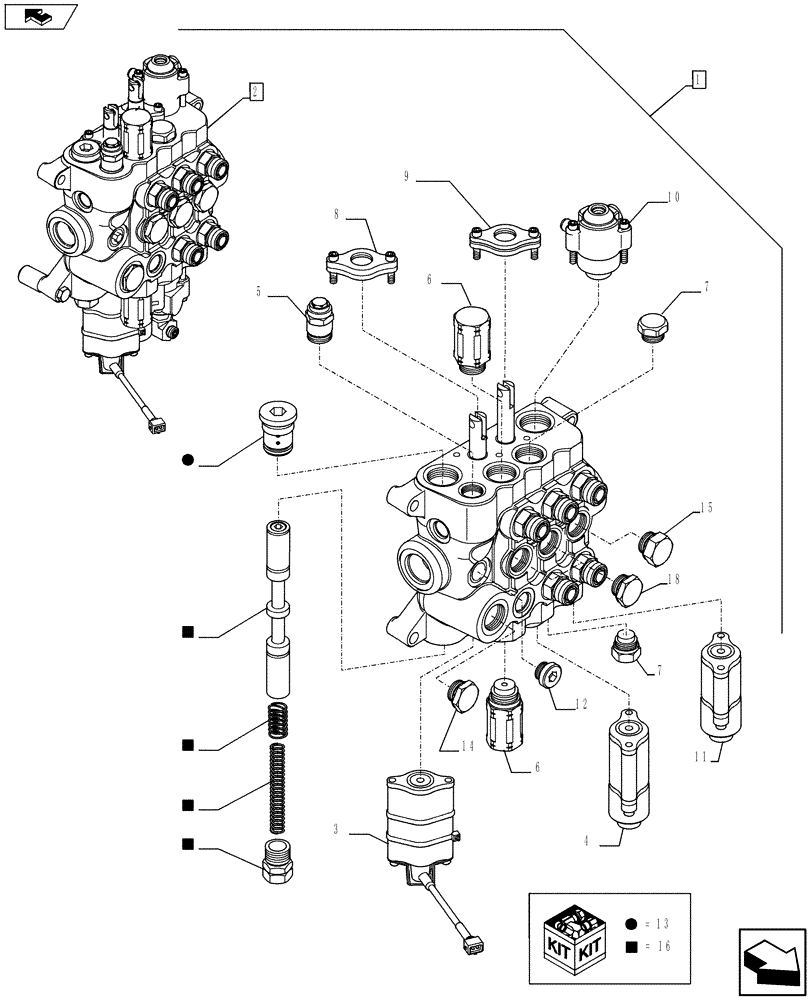

Схема запчастей Case 590SN - (88.035.22[02]) - DIA KIT, MECH CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES
16
9
3
16
home
15
11
16
4
16
18
13
1
7
8
13
16
12
10
2
14
7
6
6
5

Артикул

Название

Примечание

Количество

1

84484673

KIT

Mech Controls, 3 Spools, Standard Transmission, Incl 2 - 18

1шт.

See Ref. 88.035.22 [01], 88.035.22 [03] to 88.035.22 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84218283

VALVE

Assy, Incl 3 - 18

1шт.

3

84296814

KIT

1шт.

4

87426227

DETENT

1шт.

5

84296864

VALVE PRESSURE RELIE,7/8" - 14

1шт.

6

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

2шт.

7

81868381

CHECK VALVE,1-1/16" - 12

2шт.

8

84315193

SEAL

1шт.

9

84327674

KIT

1шт.

10

87757931

END

1шт.

11

87757932

END

1шт.

12

86625138

PLUG,7/18" - 14

1шт.

13

84296863

KIT

1шт.

14

163410

PLUG,1-1/16" - 12 ORB

Assy, Incl 17

1шт.

15

84328445

CHECK VALVE

1шт.

16

84296788

SEAL KIT

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

87426238

VALVE, CHECK

2шт.

Выбрано товаров: 20
