Запчасти Case 590SN (88.035.16[02]) - DIA KIT, BI-AUX, BACKHOE VALVE SECTION, PILOT CONTROLS, EXTENDABLE DIPPER (88) - ACCESSORIES

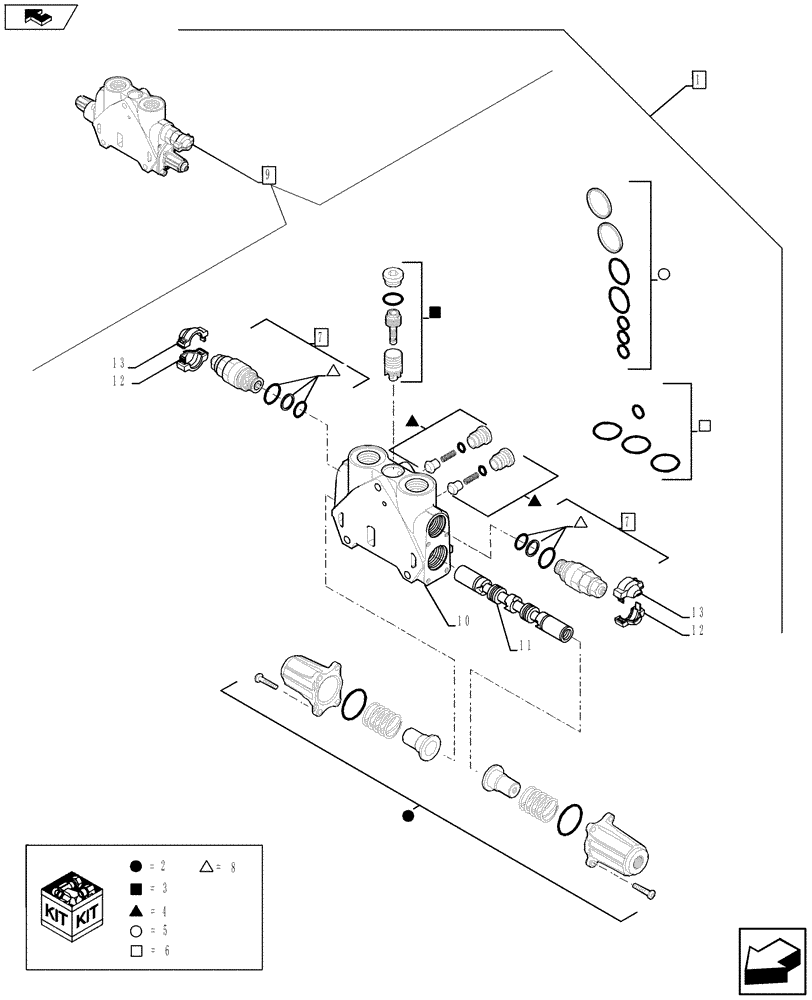

Схема запчастей Case 590SN - (88.035.16[02]) - DIA KIT, BI-AUX, BACKHOE VALVE SECTION, PILOT CONTROLS, EXTENDABLE DIPPER (88) - ACCESSORIES
4
5
13
7
6
12
12
4
3
9
6
10
1
2
7
3
8
13
4
2
11
8
8
5
home

Артикул

Название

Примечание

Количество

1

84412228

SERVICE KIT

Bi-Aux, Backhoe Valve Section, Pilot Controls, Standard Dipper, Incl 2 - 9, Serial Range: -`0

1шт.

See Ref. 88.035.16 [01], 88.035.16 [03]

1шт.

2

85826344

KIT,Operation

1шт.

3

85819378

KIT

1шт.

4

85811938

KIT,Check Valve

2шт.

5

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

6

85819148

SEAL KIT,Between Control Valve Sections

1шт.

7

85812115

VALVE PRESSURE RELIE

Assy, Incl 8

2шт.

8

85811933

SEAL KIT,Secondary Valve

1шт.

9

84278691

HYD VALVE SECTION

Assy, Incl 2 - 8

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Poppet, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Half Flange, Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

Half Flange, Incl in 9

1шт.

Выбрано товаров: 14
