Запчасти Case 590SN (88.035.06[03]) - DIA KIT, CONVERSION 2 LEVERS TO FOOT SWING - EXTENDABLE DIPPER (88) - ACCESSORIES

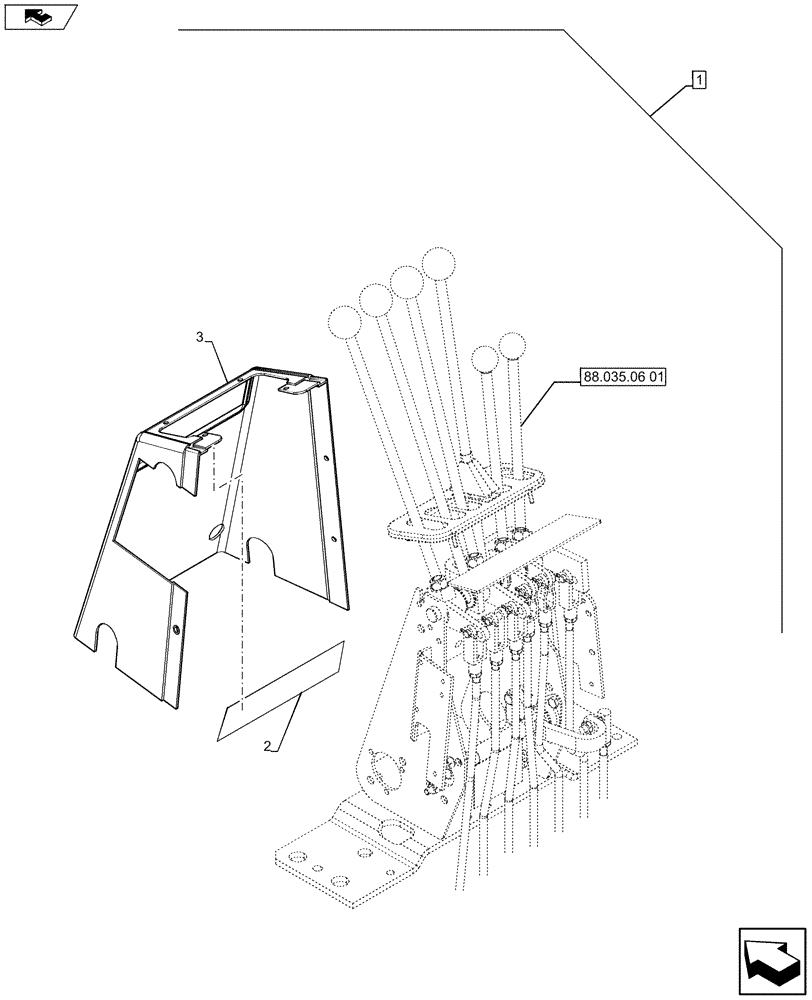

Схема запчастей Case 590SN - (88.035.06[03]) - DIA KIT, CONVERSION 2 LEVERS TO FOOT SWING - EXTENDABLE DIPPER (88) - ACCESSORIES
home
2
3
88.035.06 01
1

Артикул

Название

Примечание

Количество

1

84487936

KIT

Conversion 2 Levers to Foot Swing, Ext. Dipper, Incl 2 - 3, Serial Range: -`0

2шт.

See Ref. 88.035.06 [01] to 88.035.06 [02]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

D149825

DECAL

1шт.

3

390760A1

COVER

, Serial Range: -`0

1шт.

See Ref. 88.039.02 02

1шт.

3

87411083

COVER

, Serial Range: -`0

1шт.

8-Spools Control Valve Only

1шт.

Выбрано товаров: 8
