Запчасти Case 590SN (88.035.05[01]) - DIA KIT, CONVERSION 2 LEVERS TO FOOT SWING (88) - ACCESSORIES

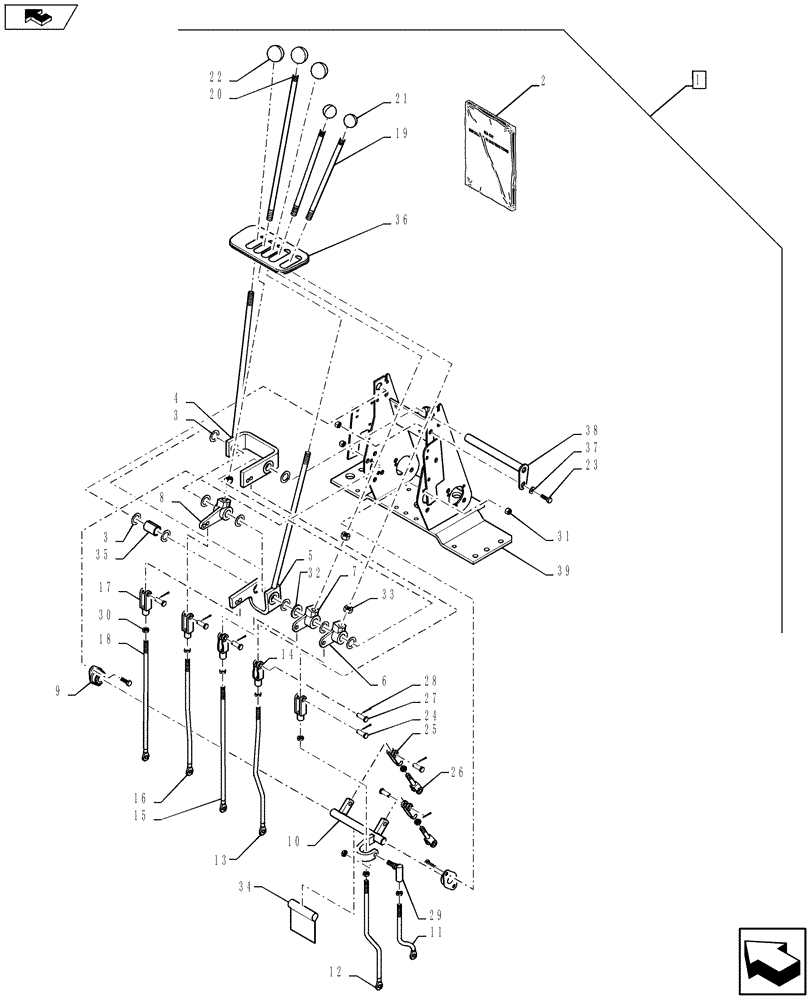

Схема запчастей Case 590SN - (88.035.05[01]) - DIA KIT, CONVERSION 2 LEVERS TO FOOT SWING (88) - ACCESSORIES
15
16
20
37
17
14
22
2
7
13
9
28
home
11
34
18
19
32
29
3
33
6
27
23
8
1
35
38
3
10
21
4
5
30
25
24
39
36
31
26
12

Артикул

Название

Примечание

Количество

1

84487934

KIT

Conversion 2 Levers to Foot Swing, Incl 2 - 39, Serial Range: -`0

1шт.

See Ref. 88.035.05 [02] to 88.035.05 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84487935

INSTRUCTION

1шт.

3

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

10шт.

4

136267A1

LEVER

1шт.

5

136269A1

LEVER

1шт.

6

D150434

CRANK LEVER

Bellcrank Extendahoe

1шт.

7

D150435

CRANK LEVER

Bellcrank Extendahoe

1шт.

8

D150397

CRANK LEVER

Bellcrank Extendahoe

1шт.

9

D139039

BEARING ASSY,19mm ID

2шт.

10

D148994

SHAFT,182.10mm L

1шт.

11

87422239

THREADED ROD,9.53mm D x 151mm L

Swing

1шт.

12

87422241

THREADED ROD,9.53mm D x 363mm L

Boom

1шт.

13

87422243

THREADED ROD,9.53mm D x 368mm L

LH Stabilizer

1шт.

14

D150493

END

2шт.

15

87422245

THREADED ROD,9.53mm D x 368mm L

RH Stabilizer

1шт.

16

87422247

THREADED ROD,9.53mm D x 352mm L

Dipper

1шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3шт.

18

87422249

THREADED ROD,9.53mm D x 368mm L

Bucket

1шт.

19

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

2шт.

20

136263A1

ROD,12.7mm OD x 407mm L

1шт.

21

D59912

KNOB

2шт.

22

L54563

KNOB

3шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

24

D149288

PIN,8.33mm OD x 30.66mm L

5шт.

25

D149262

CLEVIS,3/8-24"

2шт.

26

D150503

END

2шт.

27

427-6088

CLEVIS PIN,3/8" x 3/4"

2шт.

28

432-612

COTTER PIN,3/32" x 3/4"

7шт.

29

D149295

BALL JOINT,3/8"

1шт.

30

425-156

JAM NUT,Jam, 3/8"-24, G5

9шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

32

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

33

425-118

NUT,1/2"-20, G5

3шт.

34

87444776

WARNING DECAL

Warning: Crush Hazard; Foot Swing

1шт.

35

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

1шт.

36

D149866

BOOT

1шт.

37

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

38

87401203

SHAFT,198mm L

1шт.

39

87418516

SUPPORT

1шт.

Выбрано товаров: 41
