(88.035.03[05]) - DIA KIT, UNI TO COMBO AUX, EXTENDABLE DIPPER, MECHANICAL CONTROL

Запчасти Case 590SN (88.035.03[05]) - DIA KIT, UNI TO COMBO AUX, EXTENDABLE DIPPER, MECHANICAL CONTROL (88) - ACCESSORIES

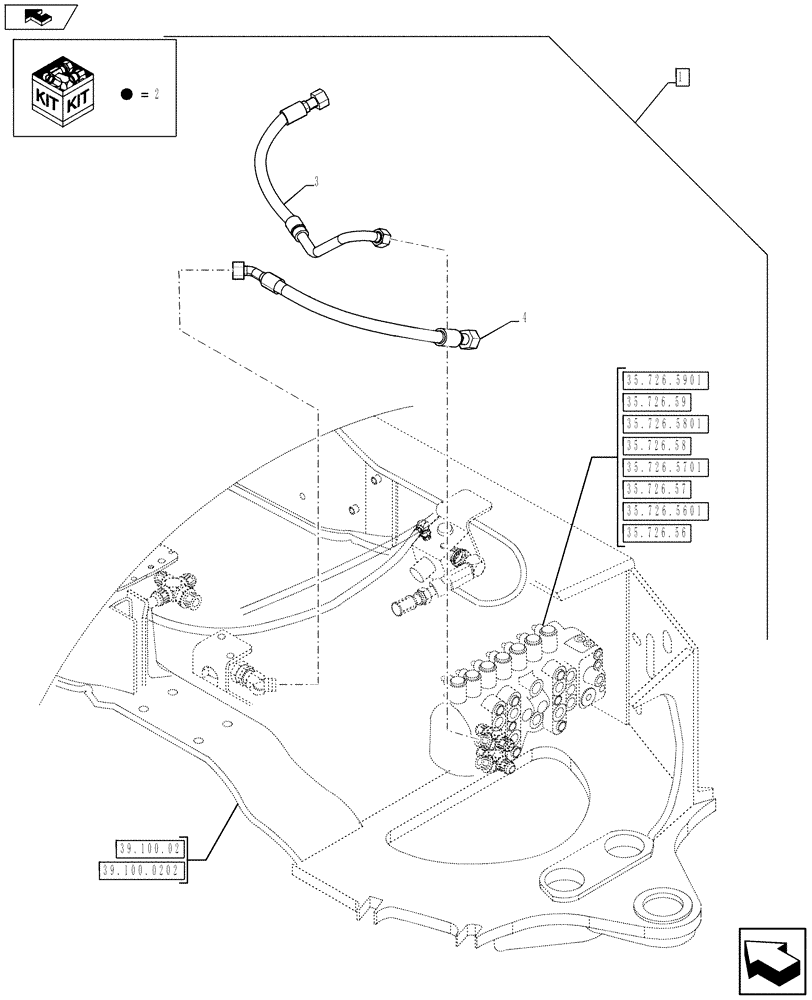

Схема запчастей Case 590SN - (88.035.03[05]) - DIA KIT, UNI TO COMBO AUX, EXTENDABLE DIPPER, MECHANICAL CONTROL (88) - ACCESSORIES
home
35.726.58
35.726.5901
35.726.5701
35.726.59
1
3
35.726.5801
35.726.5601
2
35.726.56
39.100.0202
39.100.02
4
35.726.57
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84396879

CONSTRUCTION DIA

Uni to Combo Aux, Incl 2 - 4

1шт.

See Ref. 88.035.03 [01] to 88.035.03 [04], 88.035.03 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84276556

SERVICE KIT

Hydraulic Valve Seal Kit

1шт.

3

84292027

HYD TUBE

1шт.

4

84292795

HOSE ASSY.,19mm ID x 698mm L

1шт.
