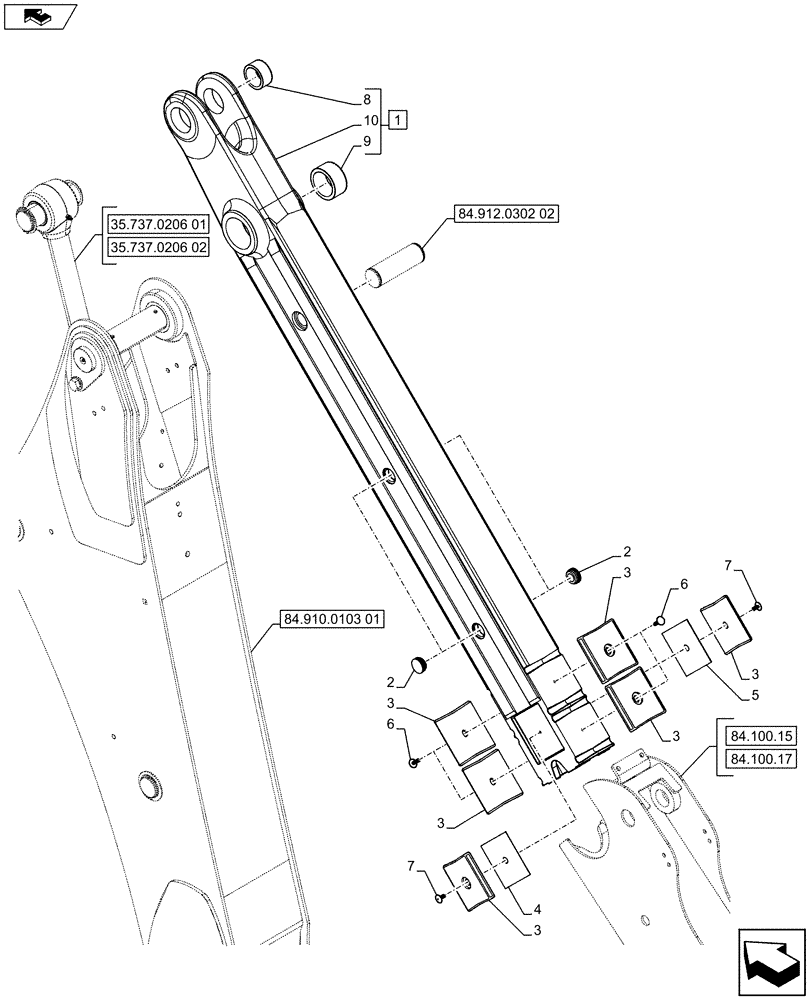

Запчасти Case 590SN (84.912.0302[01]) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM (84) - BOOMS, DIPPERS & BUCKETS

1

84298779

DIPPER

ASSY, Incl 8 - 10

1шт.

2

D133865

PLUG

4шт.

3

451384A1

WEAR PLATE

6шт.

4

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

1шт.

5

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1шт.

6

183443A1

PIN,6.6mm OD x 38.5mm L

4шт.

7

183509A1

PIN,8.3mm OD x 22mm L

2шт.

8

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

2шт.

9

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

2шт.

10

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.
