(84.100.11[01]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 590SN (84.100.11[01]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

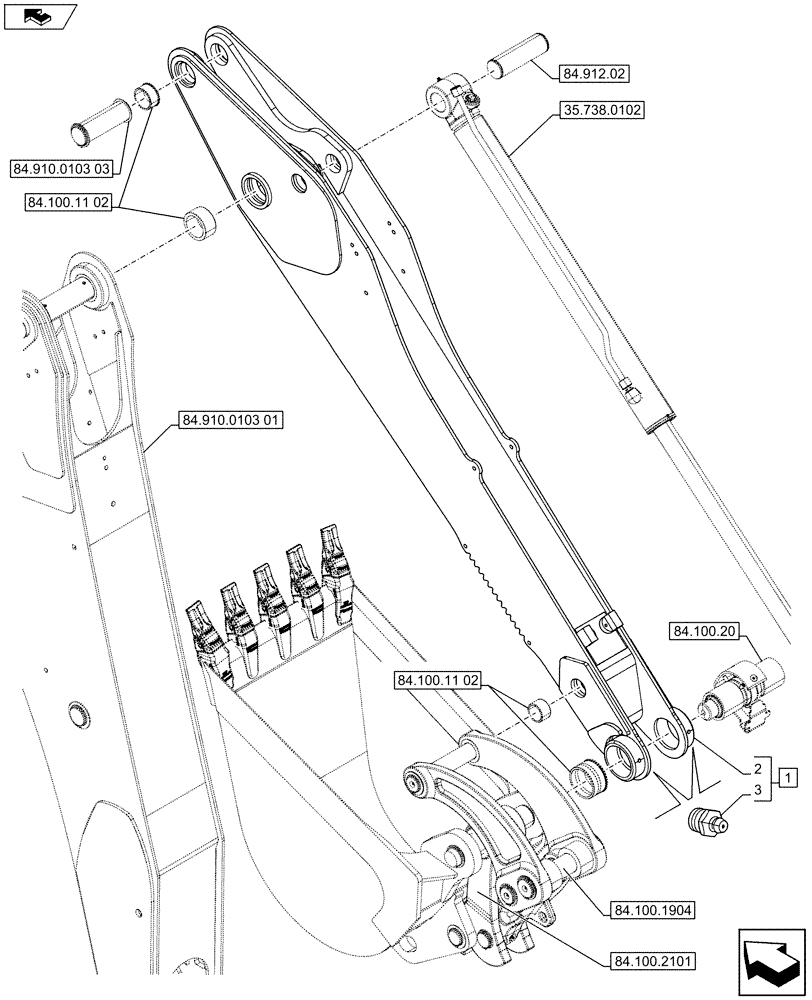

Схема запчастей Case 590SN - (84.100.11[01]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
35.738.0102
3
1
home
2
84.100.11 02
84.100.11 02
84.100.1904
84.100.20
84.910.0103 01
84.910.0103 03
84.100.2101
84.912.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479425

DIPPER

ASSY, Incl 2, 3

1шт.

See Dipper Components also in Figure 84.100.11 (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
