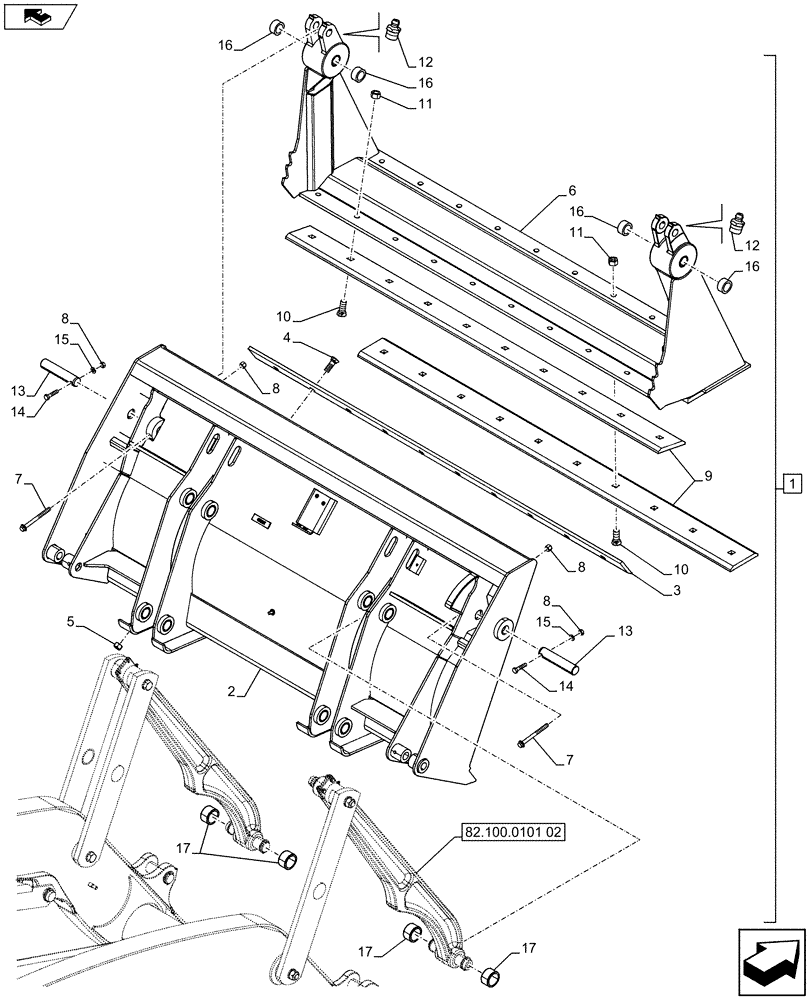

Запчасти Case 590SN (82.100.08[01B]) - VAR - 742433 - BUCKET, 1.2 YD - 93 INCH/2362MM 4-IN-1 - D7385 (82) - FRONT LOADER & BUCKET

1

47613232

4 IN 1 BUCKET,93" L

ASSY, 1.2 YD - 93 Inch/2362mm, Incl 2 - 17

1шт.

See Bucket Components also in Figure 35.723.05 (01B), 35.723.06 (01B)

1шт.

2

NSS

NOT SOLD SEPARAT

Blade, Incl in 1

1шт.

3

133542A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2359mm L

1шт.

4

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

5

29-1010

NUT,5/8"-11, G8

10шт.

6

144210A1

CLAMSHELL BUCKET

93 Inch, Incl 16

1шт.

7

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

142301A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2362mm L

2шт.

10

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

11

29-1012

NUT,3/4"-10, G8

20шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

D51391

PIN,15mm OD x 74mm L

2шт.

14

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

17

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.
