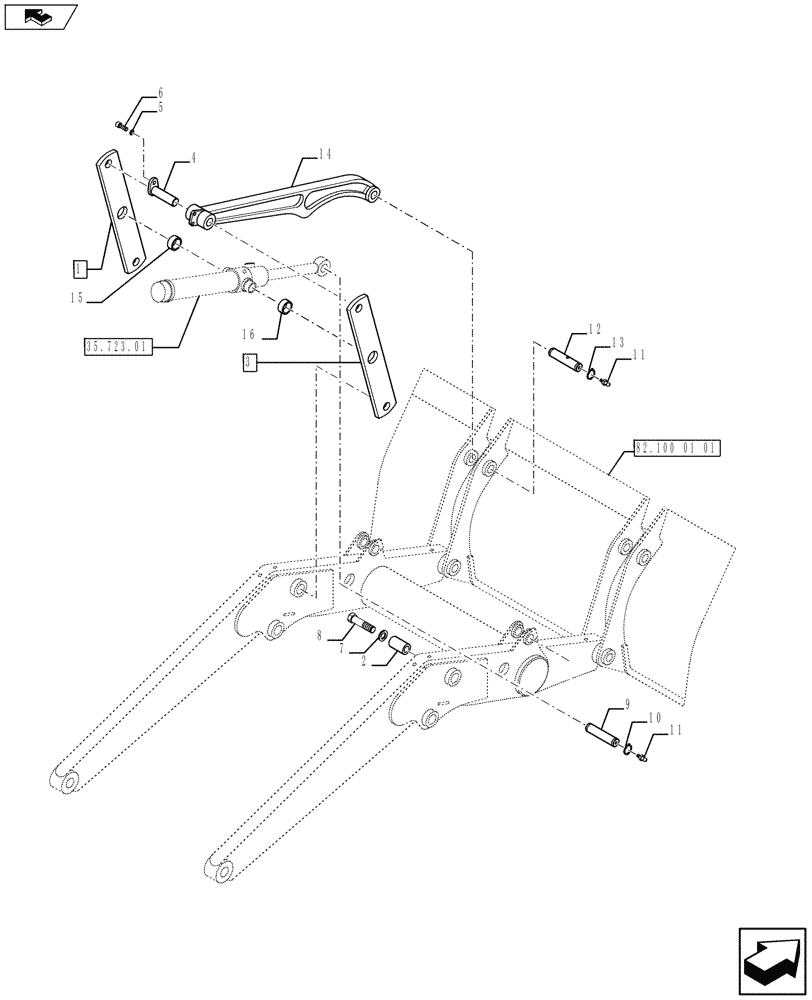

Запчасти Case 590SN (82.100.01[02]) - LOADER BUCKET LINKAGE (82) - FRONT LOADER & BUCKET

1

84281219

LINK BLOCK

Assy, Incl 15

2шт.

2

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

4шт.

3

84301381

LINK

Assy, Incl 16

1шт.

4

84270815

PIN,38.07mm OD x 173.5mm L

4шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

7

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

4шт.

8

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

9

84216893

PIN,44.4mm OD x 138.5mm L

2шт.

10

86625149

SNAP RING,#175, Ext

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

12

84367828

PIN,40mm OD x 180mm L

2шт.

13

800-44040

SNAP RING,M40, Ext

4шт.

14

84216090

LINK

2шт.

15

47865948

BUSHING,55.28mm ID x 64.99mm OD x 25.4mm L

1шт.

16

47865948

BUSHING,55.28mm ID x 64.99mm OD x 25.4mm L

1шт.
