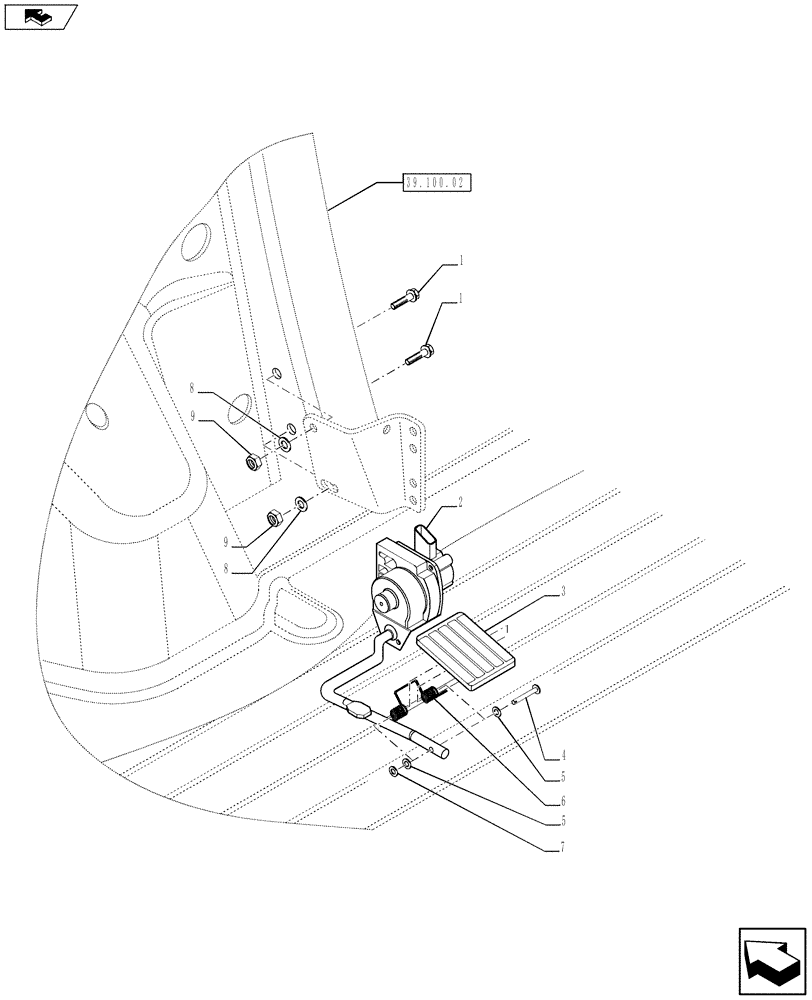

Запчасти Case 590SN (55.525.01) - THROTTLE - FOOT - ASM (55) - ELECTRICAL SYSTEMS

1

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

2

87555675

THROTTLE CONTROL

1шт.

3

282242A1

PEDAL

1шт.

4

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

6

256776A1

SPRING

1шт.

7

103-1518

SNAP RING,#18, Ext

1шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
