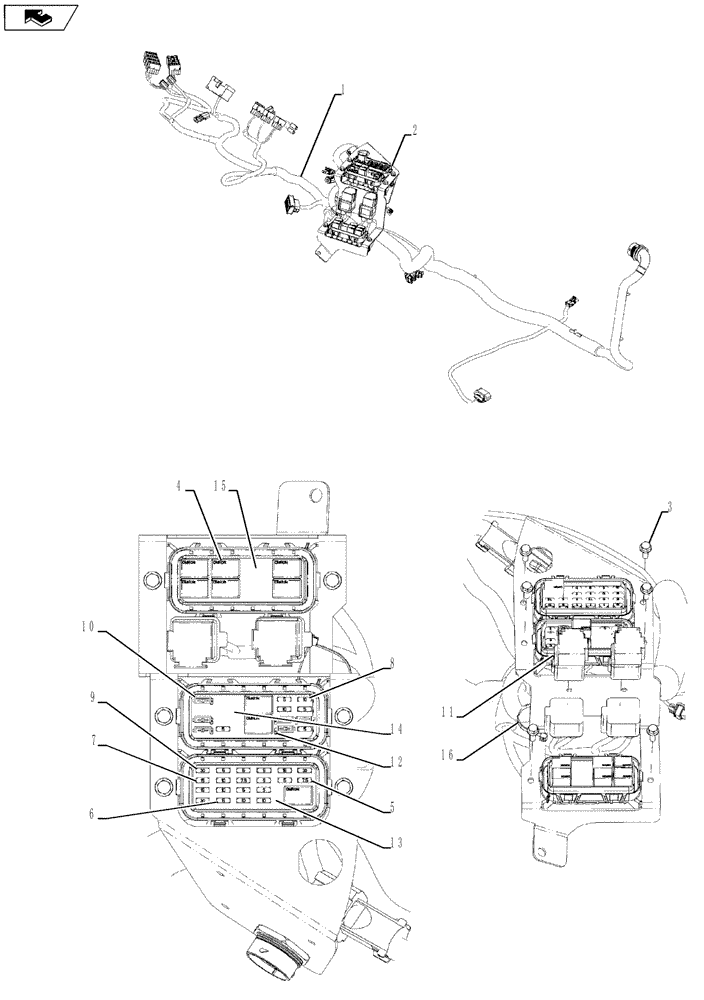

Запчасти Case 590SN (55.513.13) - VAR - 423060, 423061, 423062 - SIDE PANEL, WIRE HARNESS, TRANSMISSION, S & H TYPE (55) - ELECTRICAL SYSTEMS

1

84292424

WIRE HARNESS

1шт.

2

84292270

BRACKET

1шт.

3

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

4

87655334

RELAY,12V, 35A, Micro

35A, Road Lights

8шт.

5

121411A1

FUSE,7.5A, Mini, Brown

2шт.

6

121410A1

FUSE,5A, Mini, Tan

13шт.

7

121413A1

FUSE,15A, Mini, Blue

3шт.

8

121412A1

FUSE,10A, Mini, Red

6шт.

9

121416A1

FUSE,30A, Mini, Green

3шт.

10

416569A1

DIODE ELEMENT,7300W

Bussman 280 Series

6шт.

11

84271717

RELAY,12V, 50A

70A Sealed

2шт.

12

84292399

KEY

6шт.

13

84290788

DECAL

Fuses

1шт.

14

84290785

DECAL

Fuses, Relays and Diodes

1шт.

15

84290787

DECAL

Relays

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
