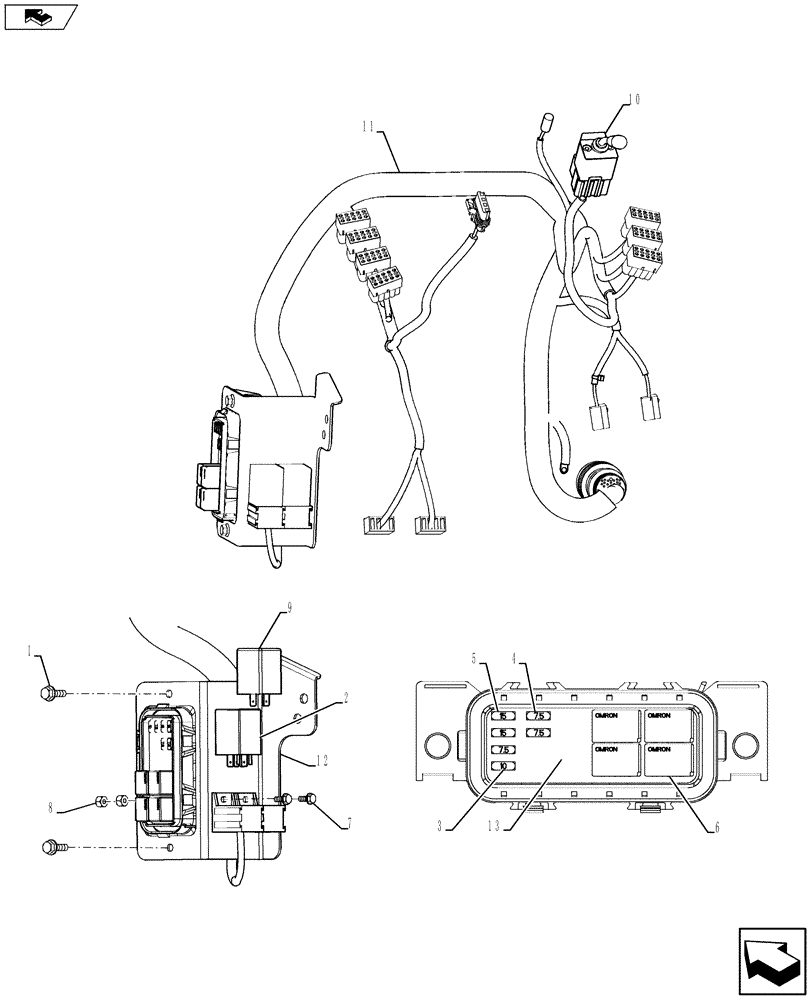

Запчасти Case 590SN (55.513.0303) - HARNESS - FRONT CONSOLE, SPS TRANSMISSION (55) - ELECTRICAL SYSTEMS

1

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

2

87578455

RELAY,12V, Turn Signal and Hazard

Turn Signal and Hazard

1шт.

3

121412A1

FUSE,10A, Mini, Red

1шт.

4

121411A1

FUSE,7.5A, Mini, Brown

1шт.

5

121413A1

FUSE,15A, Mini, Blue

2шт.

6

87655334

RELAY,12V, 35A, Micro

35A, Road Lights

5шт.

7

87301687

SCREW,HWH, #10 - 32 x 1/2"

1шт.

8

231-24409

NUT,#10-32

1шт.

9

121410A1

FUSE,5A, Mini, Tan

2шт.

10

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

11

84386612

HARNESS

Front Console

1шт.

12

84238043

BRACKET

1шт.
