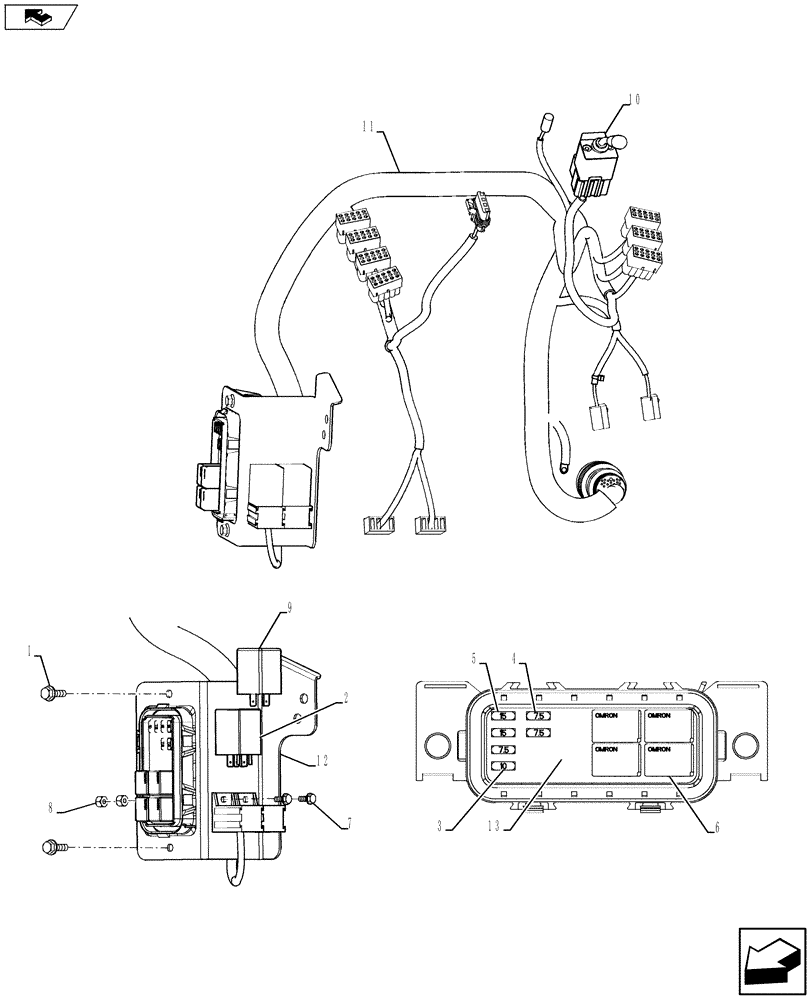

Запчасти Case 590SN (55.513.03) - VAR - 423058, 423059 - HARNESS - FRONT CONSOLE, STANDARD TRANSMISSION (55) - ELECTRICAL SYSTEMS

1

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

2

87578455

RELAY,12V, Turn Signal and Hazard

Turn Signal and Hazard

1шт.

3

121412A1

FUSE,10A, Mini, Red

1шт.

4

121411A1

FUSE,7.5A, Mini, Brown

3шт.

5

121413A1

FUSE,15A, Mini, Blue

2шт.

6

87655334

RELAY,12V, 35A, Micro

35A, Road Lights

4шт.

7

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

8

231-24409

NUT,#10-32

2шт.

9

347706A3

RELAY,12V, 5A

1шт.

10

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

11

84342267

WIRE HARNESS

1шт.

12

84238043

BRACKET

1шт.

13

84290789

DECAL

1шт.
