(55.512.43) - VAR - 423083 - CONTROL - BACKHOE, AUXILIARY FOOT SWITCH

Запчасти Case 590SN (55.512.43) - VAR - 423083 - CONTROL - BACKHOE, AUXILIARY FOOT SWITCH (55) - ELECTRICAL SYSTEMS

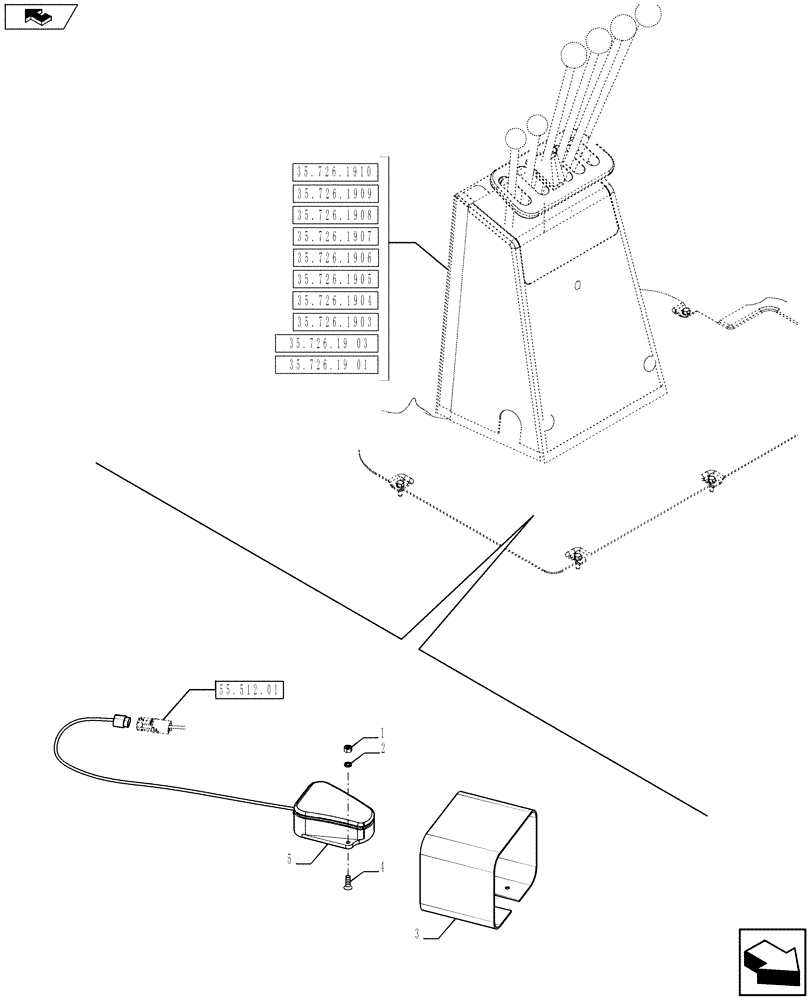

Схема запчастей Case 590SN - (55.512.43) - VAR - 423083 - CONTROL - BACKHOE, AUXILIARY FOOT SWITCH (55) - ELECTRICAL SYSTEMS
1
35.726.1904
35.726.1910
home
4
35.726.1906
35.726.1909
2
5
35.726.1905
35.726.1907
55.512.01
35.726.1903
35.726.1908
3
35.726.19 01
35.726.19 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

824-1405

NUT,M5, Cl 5

2шт.

2

892-11005

LOCK WASHER,M5

2шт.

3

300030A1

COVER

1шт.

4

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

2шт.

5

137219A1

SWITCH

Foot, Auxiliary Hydraulics

1шт.
