(55.512.41) - CONTROLS - LOADER CLAM

Запчасти Case 590SN (55.512.41) - CONTROLS - LOADER CLAM (55) - ELECTRICAL SYSTEMS

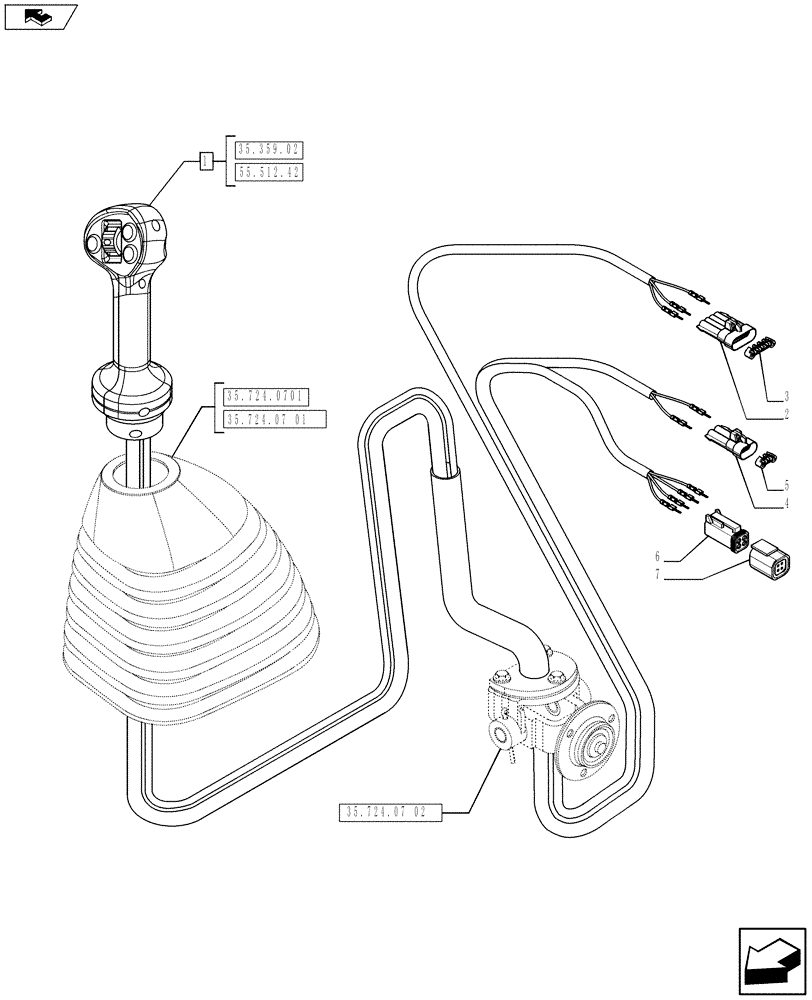

Схема запчастей Case 590SN - (55.512.41) - CONTROLS - LOADER CLAM (55) - ELECTRICAL SYSTEMS
4
35.724.07 02
1
35.724.0701
3
2
55.512.42
35.724.07 01
7
35.359.02
6
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87638044

JOYSTICK

Assy, Loader Control Lever, Three Button, DeCluth, Differential Lock and Kick Down, Prop Roller with Detent; 3 Spool

1шт.

2

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

3

258616A1

LOCK

1шт.

4

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

5

258613A1

LOCK

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

7

225327C1

WEDGE,Lock, Black

1шт.

Выбрано товаров: 0
