(55.512.37) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & BI-DIRECTIONAL BUTTONS

Запчасти Case 590SN (55.512.37) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & BI-DIRECTIONAL BUTTONS (55) - ELECTRICAL SYSTEMS

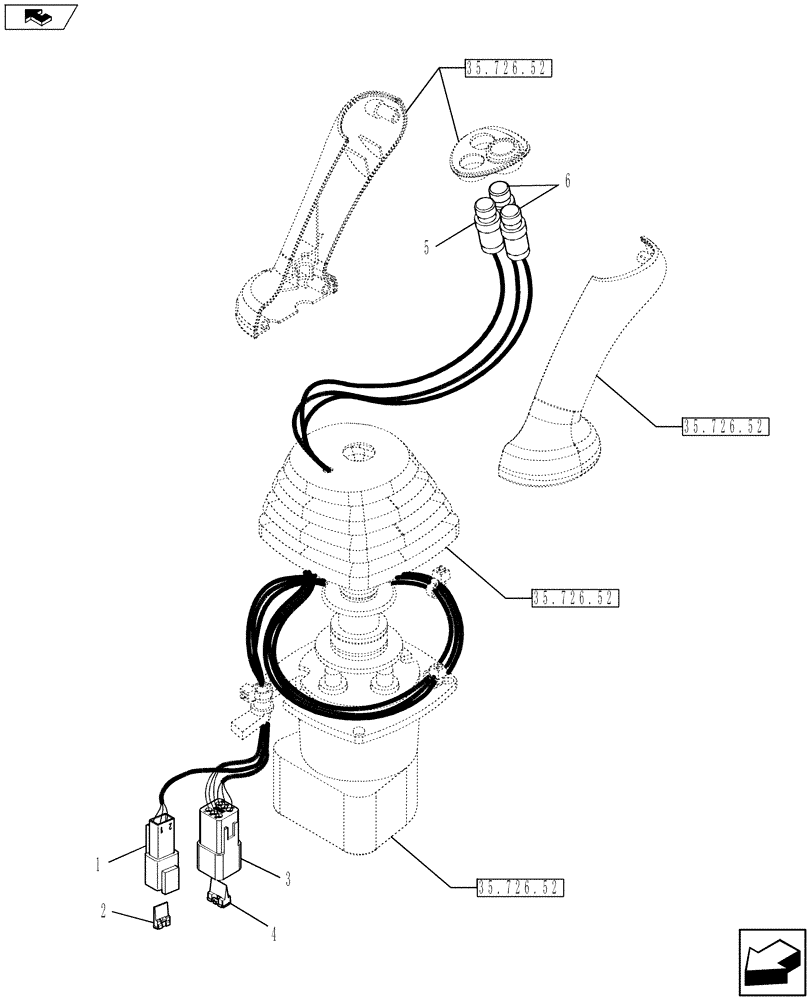

Схема запчастей Case 590SN - (55.512.37) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & BI-DIRECTIONAL BUTTONS (55) - ELECTRICAL SYSTEMS
35.726.52
5
35.726.52
home
6
1
2
3
35.726.52
35.726.52
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

2

225318C1

ELEC CONNECTOR,2 Pin

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

4

225353C1

WEDGE,Lock, Black

Type W6P, Connector

1шт.

5

87437372

SWITCH ASSY

Push Button Horn

1шт.

6

84134639

SWITCH

Push Button; Retract and Extendahoe

2шт.
