(55.512.36) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN

Запчасти Case 590SN (55.512.36) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN (55) - ELECTRICAL SYSTEMS

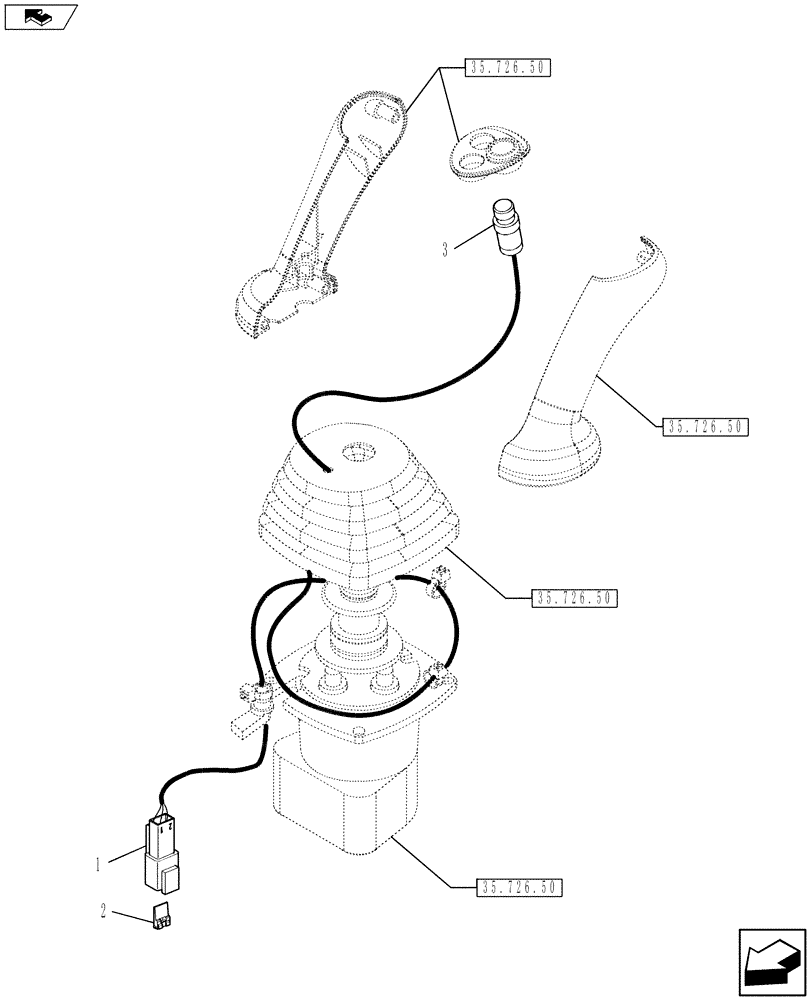

Схема запчастей Case 590SN - (55.512.36) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN (55) - ELECTRICAL SYSTEMS
35.726.50
1
3
35.726.50
35.726.50
35.726.50
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

2

225318C1

ELEC CONNECTOR,2 Pin

1шт.

3

87437372

SWITCH ASSY

Push Button Horn

1шт.

Выбрано товаров: 3
