(55.512.35) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL

Запчасти Case 590SN (55.512.35) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL (55) - ELECTRICAL SYSTEMS

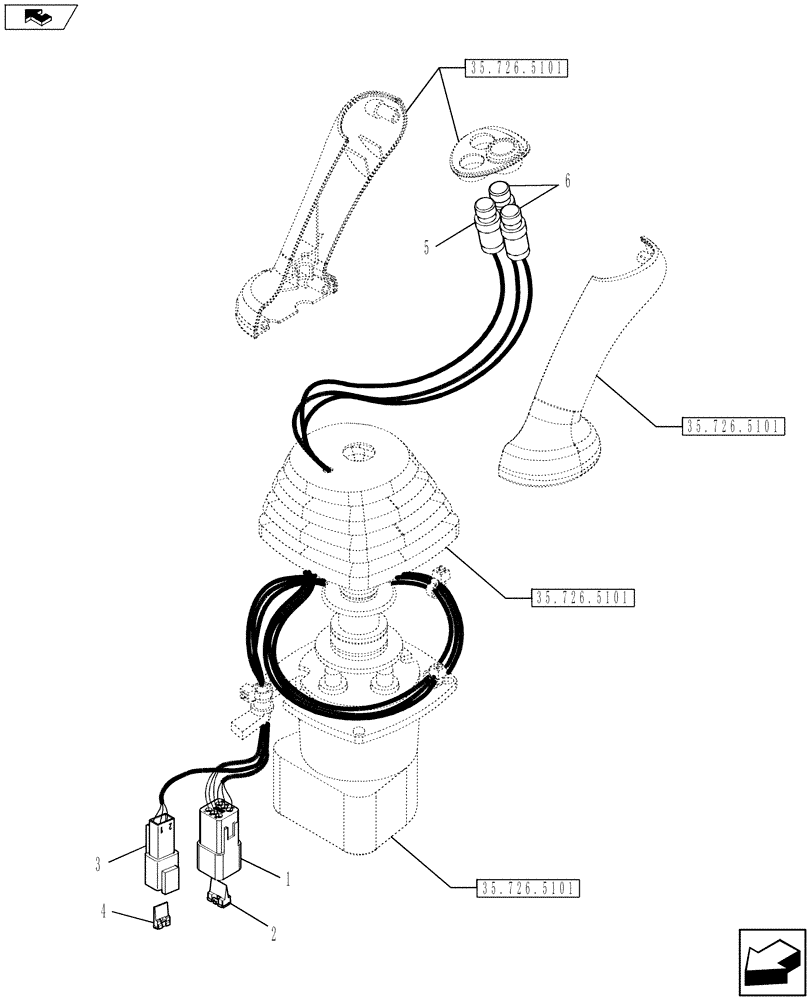

Схема запчастей Case 590SN - (55.512.35) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL (55) - ELECTRICAL SYSTEMS
6
3
1
35.726.5101
35.726.5101
4
2
35.726.5101
home
5
35.726.5101
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

2

225353C1

WEDGE,Lock, Black

Type W6P, Connector

1шт.

3

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

4

225318C1

ELEC CONNECTOR,2 Pin

1шт.

5

87546922

SWITCH ASSY

Push Button; One Touch Decelerator

1шт.

6

84134639

SWITCH

Push Button; Retract and Extendahoe

2шт.
