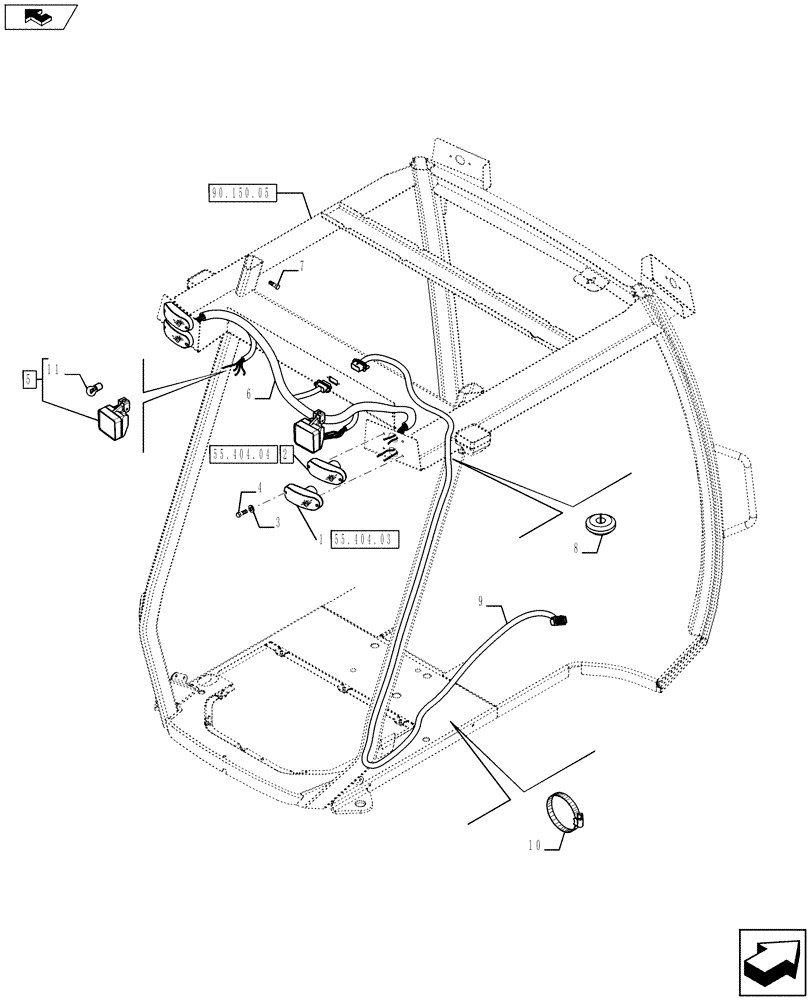

Запчасти Case 590SN (55.404.02[01]) - VAR - 423000, 442082 - CANOPY, ROPS - LAMP, HARNESS (55) - ELECTRICAL SYSTEMS

1

D121152

LAMP,12V

Assy, See 55.404.03, Turn SMV

2шт.

2

D135384

LAMP,12V

Assy, See 55.404.04, Hazzard and Turn

2шт.

3

495-31022

WASHER,#10

8шт.

4

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

8шт.

5

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Incl 11, Flood 12V 55W

6шт.

5

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

6шт.

6

84292414

HARNESS

Rear Light Canopy, Serial Range: -C7337

1шт.

6

47533367

WIRE HARNESS

Rear Light Canopy, Start Serial: D7337

1шт.

7

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

7шт.

8

87370966

GROMMET,25.4mm OD, 7.94mm ID, 11.11mm L

2шт.

9

84292409

HARNESS

C-Post, Serial Range: -C7337

1шт.

9

47533359

WIRE HARNESS

C-Post, Start Serial: D7337

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

11

1312210C2

BULB,Halogen H3, 12V, 55W

1шт.
