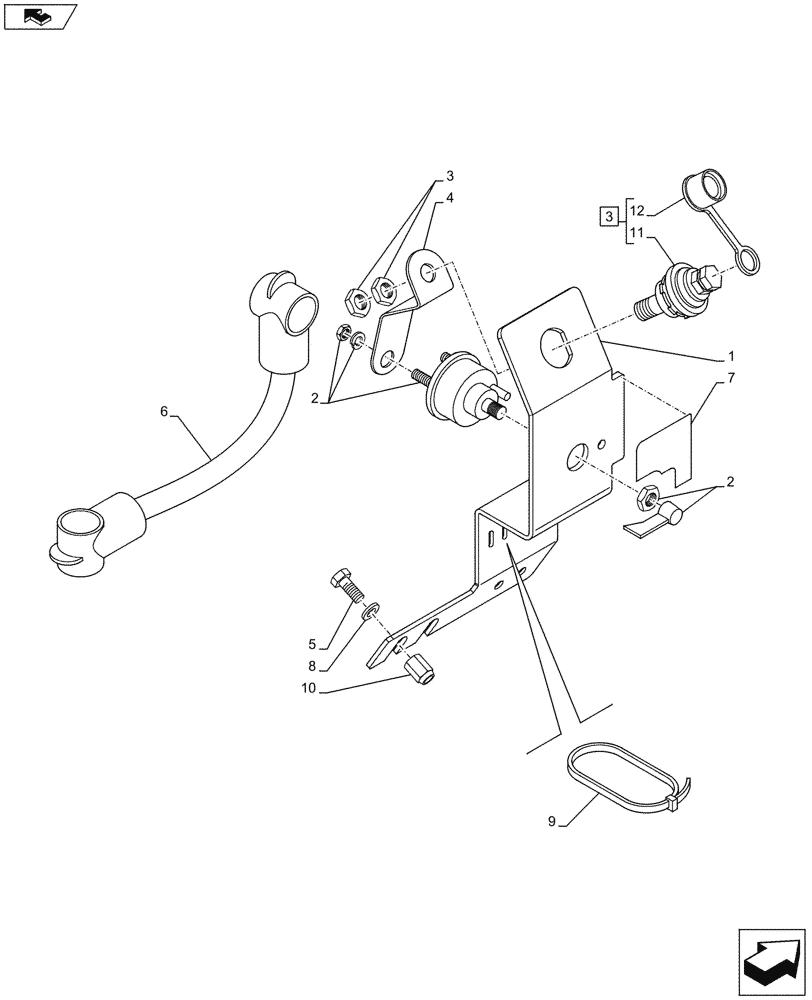

Запчасти Case 590SN (55.302.03) - VAR - 747874 - REMOTE JUMP START (55) - ELECTRICAL SYSTEMS

1

84540360

BRACKET

Battery Disconnect

1шт.

2

87409316

SWITCH

Master Disconnect

1шт.

3

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Remote Jump Start Positive Assy, Incl 11, 12

1шт.

3

48016448

BOOT

1шт.

4

84543508

BAR

Remote Jump Start Negative

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

, Serial Range: -C9003

2шт.

5

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

, Start Serial: D9003

2шт.

6

84470445

CABLE

Positive, Serial Range: -C9003

1шт.

6

84598674

POS BATTERY CABLE

, Start Serial: D9003

1шт.

7

379422A1

DECAL

Master Disconnect

1шт.

8

892-11008

LOCK WASHER,8mm ID

, Serial Range: -C9003

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

87417383

THREADED INSERT,M8 x 1.25

, Serial Range: -C9003

2шт.

11

NSS

NOT SOLD SEPARAT

Terminal Connector, Incl in 3

1шт.

12

48016448

BOOT

1шт.
