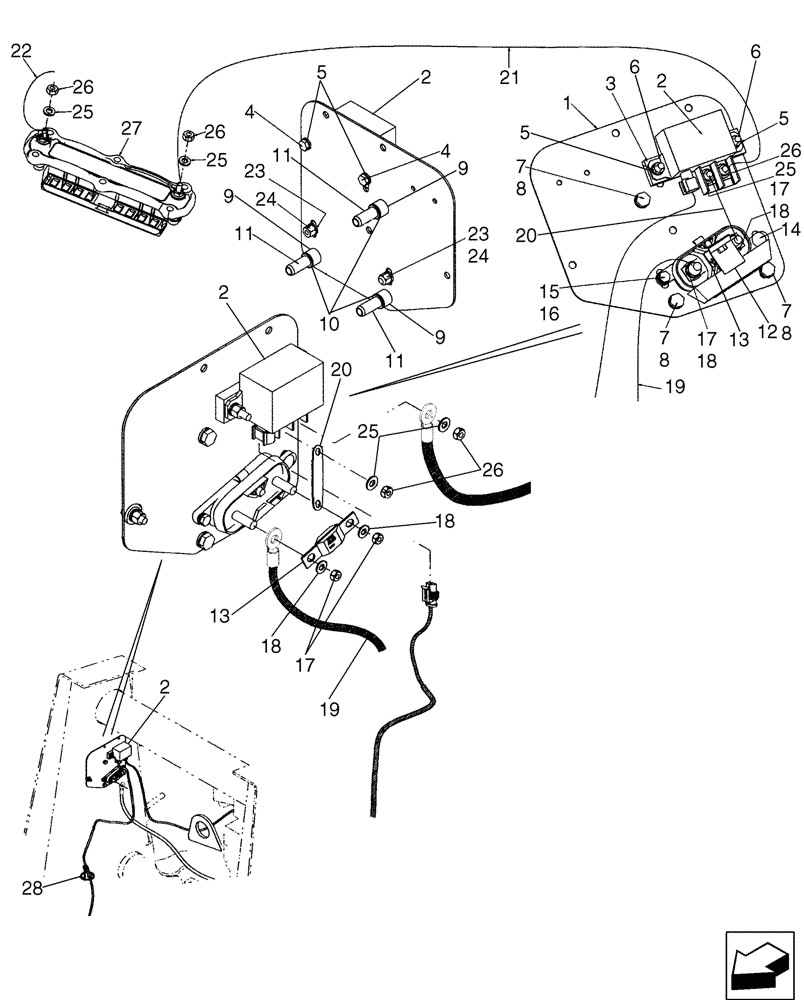

Запчасти Case 590SN (55.201.0201) - VAR - 423093 - COLD START / GRID HEATER (55) - ELECTRICAL SYSTEMS

1

87397601

BRACKET, SUPPORTING,2mm Thk

1шт.

2

86619908

RELAY,12V, 150A

Cold Start

1шт.

3

87414237

PLATE,25mm W x 102mm L x 10mm Thk

Bar, 10 mm Spacer

1шт.

4

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

5

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

9

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

10

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

3шт.

11

87417383

THREADED INSERT,M8 x 1.25

M8 x 1-1/4

3шт.

12

440038A1

JUNCTION BLOCK

1шт.

13

87410602

FUSE,300A, Blade

1шт.

14

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

16

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

19

87419615

CABLE ASSY.

Starter To Fuse

1шт.

20

87410265

BAR

CABLE Fuse To Relay

1шт.

21

87608352

WIRE HARNESS

Relay To Grid Heater

1шт.

22

87601612

GROUND CABLE

Grid Heater

1шт.

23

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

27

2854837

HEATER

Grid

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
