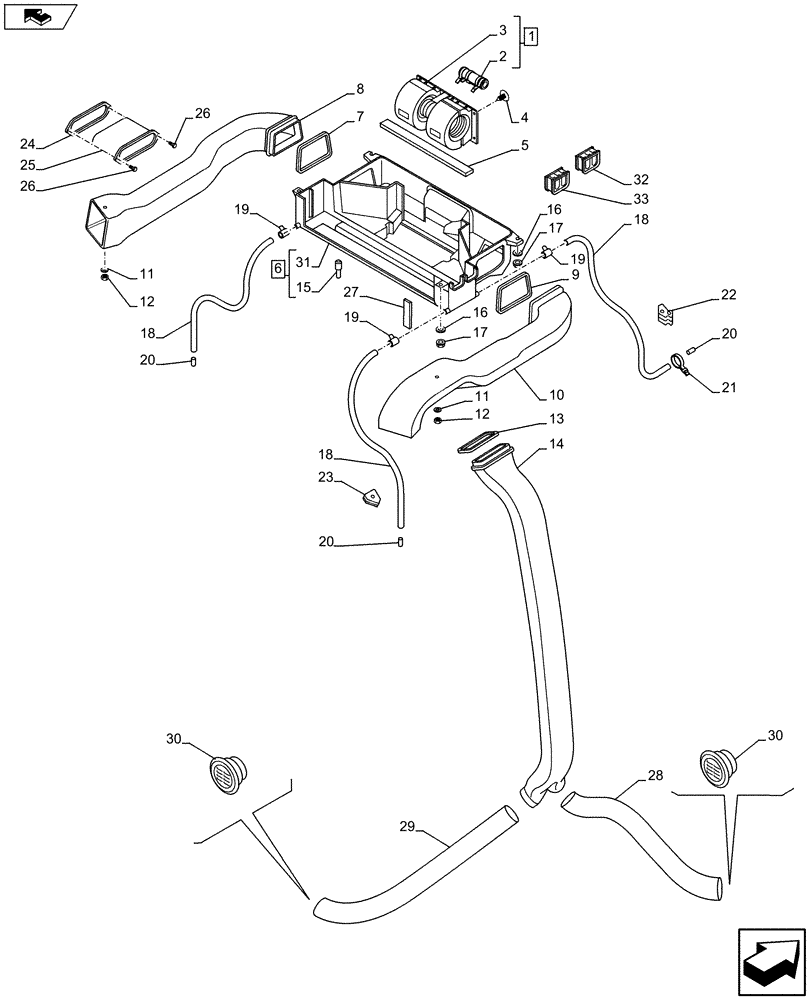

Запчасти Case 590SN (50.200.05) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES (50) - CAB CLIMATE CONTROL

1

377220A2

BLOWER ASSY.

Incl 2, 3

1шт.

377220A2R

REMAN-BLOWER

580N - FROM PIN NCC560000, 580SN - FROM PIN NCC564000, 580SNWT, 590SN all TIER 4A (3/12-)

1шт.

377220A2C

CORE-BLOWER

Return Number

1шт.

2

359504A1

RESISTOR

Blower Motor, Consists Of A Multi-Tapped Ceramic Resistor And A Thermal Fuse (kysor number 222979)

1шт.

3

NSS

NOT SOLD SEPARAT

Blower, Incl in 1

1шт.

4

182697A1

FASTENER

1шт.

5

181981A1

SEALING STRIP

6 x 20 x 355 mm; Adhesive Back; Under Blower

1шт.

6

360251A3

HOUSING

ASSY, Incl 15, 31

1шт.

7

368805A1

FOAM INSULATION

LH

1шт.

8

360253A3

AIR DUCT

LH

1шт.

9

369249A1

RUBBER SEAL,183mm L

RH

1шт.

10

360254A3

AIR DUCT

RH

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

368807A1

RUBBER SEAL,8mm Thk

1шт.

14

360255A1

DUCT

1шт.

15

373995A1

INSERT

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

18

87615800

TUBE,16.88 mm ID x 549.00 mm

Drain

4шт.

19

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

20

365789A1

DRAIN VALVE

Drain

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

2шт.

22

383794A2

PLUG

2шт.

23

383795A2

PLUG

580SM Models

2шт.

24

381113A2

INSULATOR,3mm Thk

1шт.

25

381111A2

SLEEVE

1шт.

26

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

2шт.

27

377230A3

SEAL,94mm L

16 mm thk; Fresh Air Duct To Ventilation Housing

2шт.

28

375392A1

AIR DUCT

750 mm; Cut from 236559A1

1шт.

29

368818A1

AIR DUCT,63.5mm ID x 1015mm L

1015 mm; Cut from 236559A1

1шт.

30

398986A1

VENT

2шт.

31

NSS

NOT SOLD SEPARAT

Housing, Incl in 6

1шт.

32

403225A1

SEAL,62mm L

Heater Tubes At Housing

1шт.

33

403193A1

SEAL,62mm L

Air Conditioning Tubes At Housing

1шт.
