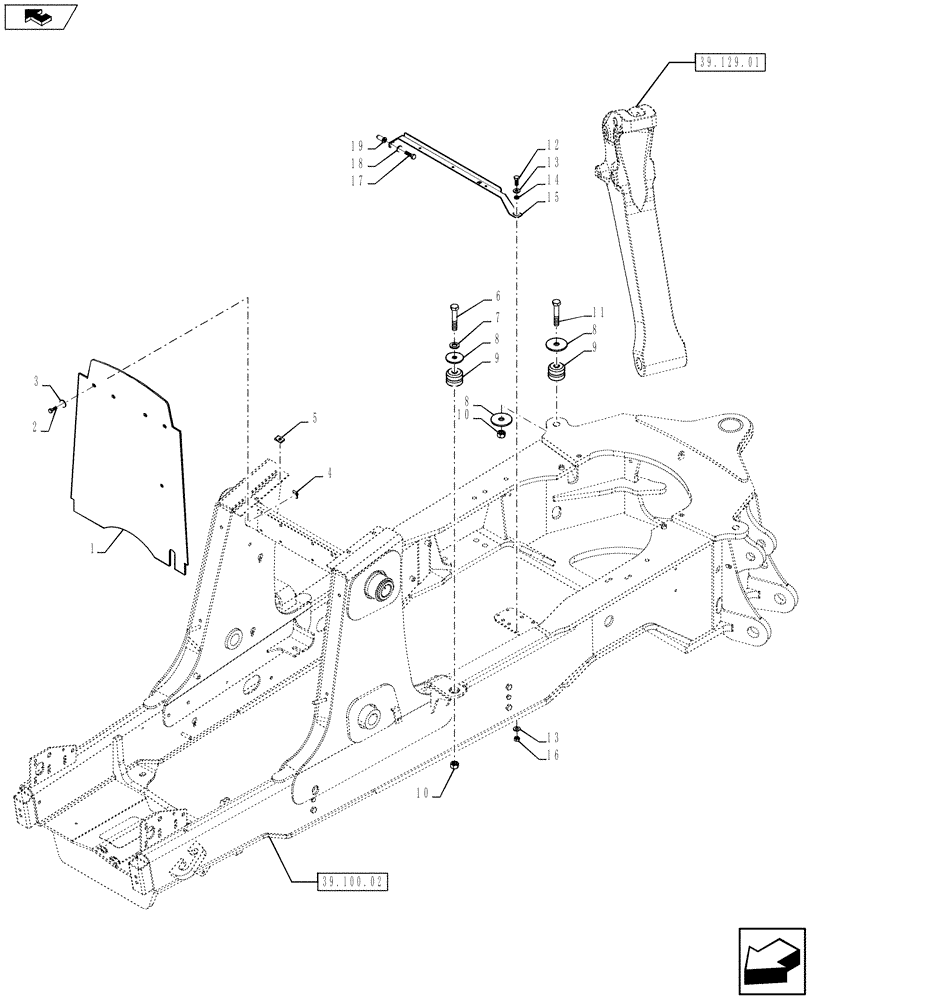

Запчасти Case 590SN (39.100.01) - CHASSIS (39) - FRAMES AND BALLASTING

1

87652272

CURTAIN

1шт.

2

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

3

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

4

833-40408

NUT,M8, U

4шт.

5

833-40310

NUT,M10, U

4шт.

6

827-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

7

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

8

47384148

WASHER,17mm ID x 70mm OD x 4.50mm, HTS ZNM

6шт.

9

411892A1

RUBBER MOUNTING

4шт.

10

829-1416

NUT,M16, Cl 10

4шт.

11

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

14

84342280

SPACER,10.5mm ID x 15.5mm OD x 3mm Thk

1шт.

15

84254110

BRACKET, SUPPORTING

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

87417383

THREADED INSERT,M8 x 1.25

1шт.
