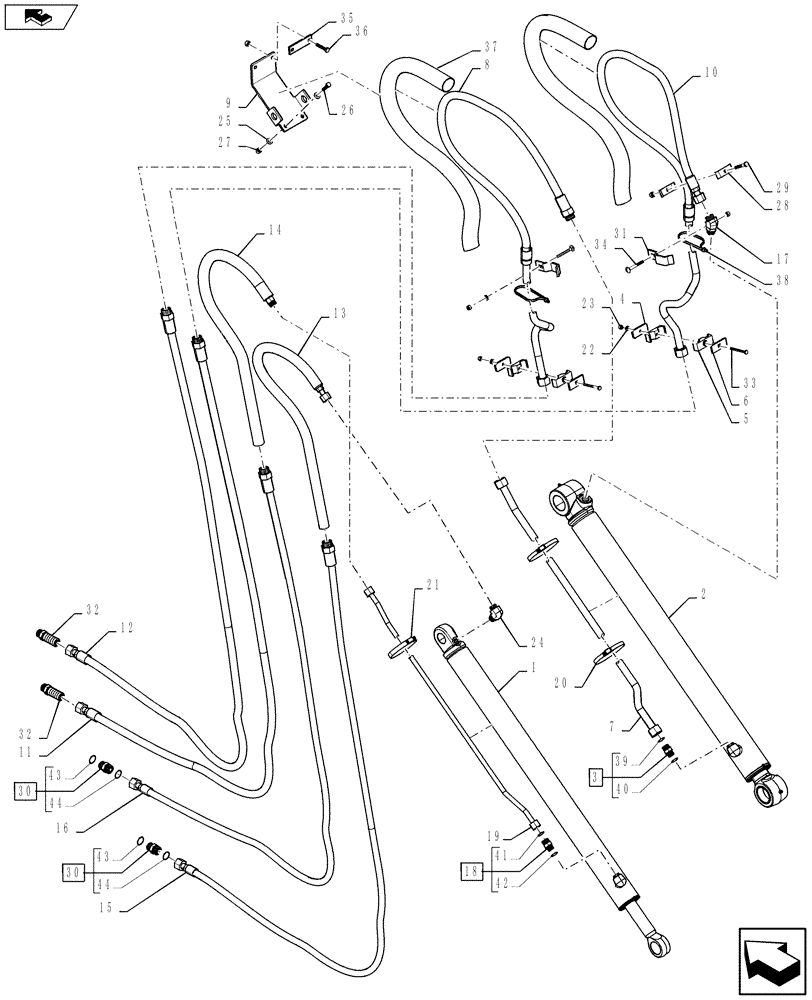

Запчасти Case 590SN (35.740.0202) - VAR - 423076 - HYDRAULICS - BACKHOE EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS

1

84182292

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

Extendable Dipper

1шт.

2

84210936

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 989.4mm Stroke

Bucket

1шт.

3

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Assy, Incl 39 - 40

1шт.

4

84342644

PLATE

2шт.

5

87000152

CLAMP,25.4mm D Clamping Pipes x 2

2шт.

6

84283495

SECURING STRAP

2шт.

7

84305542

TUBE

Bucket Cylinder Rod

1шт.

8

84280711

HYD TUBE

Bucket Cylinder Rod

1шт.

9

84371413

BRACKET

1шт.

10

84283817

HYD TUBE

Bucker Cylinder Head

1шт.

11

84264049

HOSE ASSY.,19.05mm ID x 2772mm L, SAE 100R16

Valve to Bucket Cylinder Head

1шт.

12

84264050

HOSE ASSY.,19mm ID x 2814mm L

Valve to Bucket Cylinder Rod

1шт.

13

84343076

HOSE,12.5mm ID x 958mm L

EHOE Cylinder Head

1шт.

14

84343074

HOSE,12.5mm ID x 945mm L

EHOE Cylinder Rod

1шт.

15

84264054

HOSE ASSY.,16mm ID x 2924mm L

Valve to EHOE Cylinder Head

1шт.

16

84264055

HOSE ASSY.,16mm ID x 2938mm L

Vavle to EHOE Cylinder Rod

1шт.

17

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1шт.

18

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 41 - 42

1шт.

19

84295705

RIGID TUBE

EHOE Cylinder Rod

1шт.

20

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

21

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

23

412250

NUT,M8 x 1.25, Cl 8

4шт.

24

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

26

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

27

412141

NUT,M10 x 1.5, Cl 8

5шт.

28

D143846

CLAMP

2шт.

29

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

30

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 43 - 44

2шт.

31

84284084

CLAMP

2шт.

32

87393627

HYD CONNECTOR

2шт.

33

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

34

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

35

101479A1

SUPPORT

1шт.

36

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

37

NS

NOT SERVICED

Protective Sleeve

2шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Protective Sleeve

1шт.

44

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
