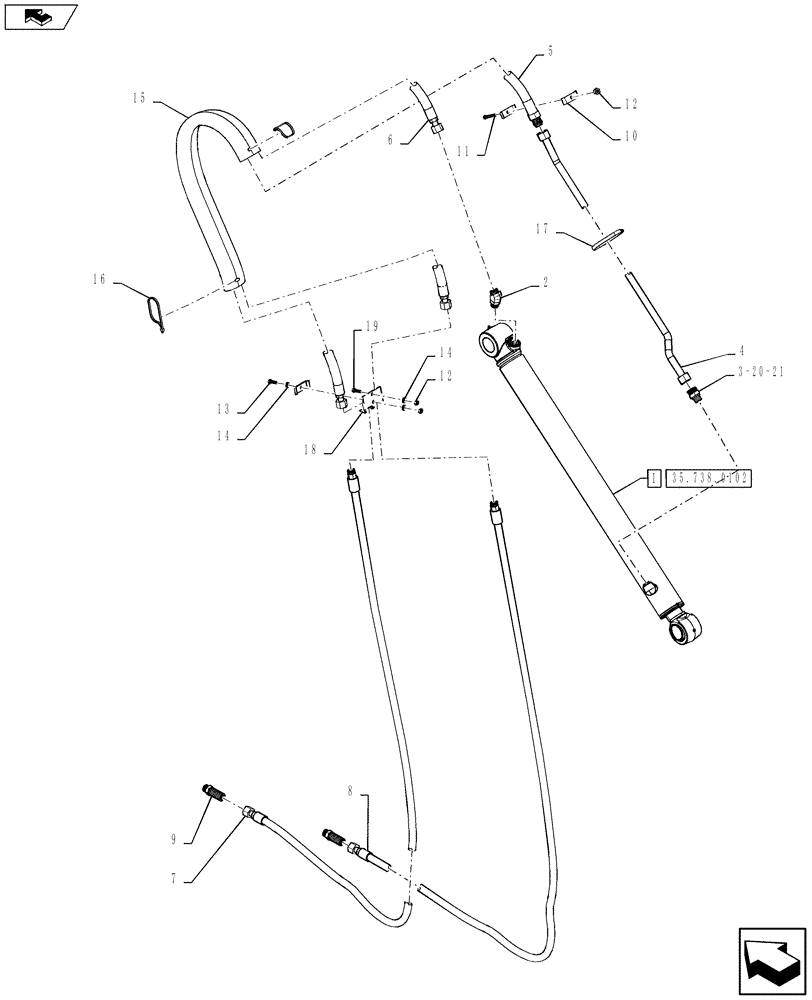

Запчасти Case 590SN (35.740.0102) - VAR - 423075 - HYDRAULICS - BACKHOE STANDARD DIPPER (35) - HYDRAULIC SYSTEMS

1

84210936

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 989.4mm Stroke

1шт.

2

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1шт.

3

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

4

84305542

TUBE

1шт.

5

84399341

HOSE ASSY.,19mm ID x 1267mm L

1шт.

6

84399343

HOSE ASSY.,19mm ID x 1273mm L

1шт.

7

84262450

HOSE ASSY.,19mm ID x 2825mm L

1шт.

8

84264059

HOSE ASSY.,19mm ID x 2825mm L

1шт.

9

87393627

HYD CONNECTOR

2шт.

10

D143846

CLAMP

3шт.

11

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

12

412141

NUT,M10 x 1.5, Cl 8

3шт.

13

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

15

84321337

SLEEVE,1245mm L

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

17

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

18

84408244

HOSE CLAMP

1шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.
